Introduction to Ship Steering Gear Rooms

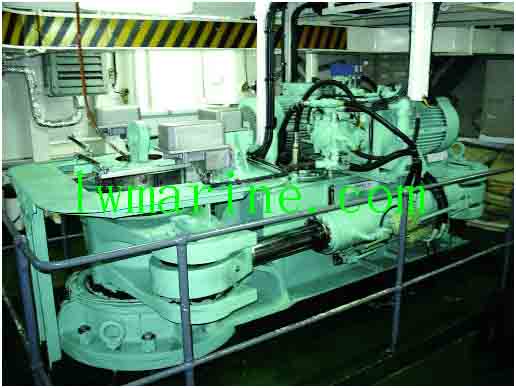

The steering gear room is a critical compartment located in the vessel’s stern, typically below the upper deck. It houses essential navigation equipment including the main steering gear, hydraulic power units, ram-type tillers, and the emergency steering apparatus. This compartment is often situated directly above the aft peak tank.
Compliance with international safety standards is paramount. The SOLAS Convention (Safety of Life at Sea) mandates specific requirements for escape routes from steering gear rooms, low-level alarms for hydraulic oil tanks, and the installation of mechanical ventilation systems to ensure adequate air circulation. Bulkheads separating the steering gear room from adjacent spaces typically require A-60 or A-15 class fire-rated divisions to contain potential fires.
Structural Design of a Marine Steering Gear Room
The physical structure is designed for both functionality and safety. A standard ship steering gear room structure includes:
- Ventilation System: The compartment’s upper section features ventilation openings connected to external ventilation ducts. A storm cover is fitted to prevent seawater ingress.
- Storm Cover Mechanism: This cover is often operable remotely via a wire rope and pulley system, allowing crew to open or close it from a safe and accessible location, even in adverse weather conditions.
- Robust Construction: The entire structure is built to be strong and watertight, integral to the ship’s hull strength.
Steering Gear Room Arrangement Plan
The steering gear arrangement plan is a fundamental technical drawing that details the exact location of all equipment within the compartment. It serves both as a submission document for class approval and as a blueprint for production and installation.
Key equipment detailed on the plan includes:
- a) Ram-type tiller (Steering Gear Actuator)
- b) Hydraulic Power Pack (Pump Unit)
- c) Hydraulic Oil Storage Tank
- d) Hand-operated Hydraulic Pump
- e) Hydraulic Piping System
- f) Handrails and Guardrails
- g) Non-slip Grating Flooring
- h) Oil Containment Coaming
- i) Electrical Control Panel
- j) Rudder Angle Indicator & Linkage
- k) Emergency Steering Gear
- l) Space Heater
- m) Miscellaneous other devices
Drawing Compliance Requirements:
The layout must adhere to the owner’s specification and rules set by classification societies (like ABS, DNV, Lloyd’s) and the SOLAS Convention. Key regulatory points include:
- The steering gear must be secured to a robust foundation with fitted bolts and appropriate chocks.
- The compartment must be readily accessible and, where possible, separated from the main machinery space.
- The arrangement must provide clear and safe working access to all machinery and controllers.
Historical Development: China’s Steering Gear Technology
China initiated its independent steering gear compartment development program in March 1975. The system comprised a turbogenerator, readiness assembly, gas generator, and associated sensors, developed collaboratively by several Shanghai-based electronics and instrumentation factories.
Early prototypes faced challenges with low gas pressure and component reliability. By October 1976, a redesign increased the gas source pressure and added protective features to the filtration system, meeting performance specifications.
The first successful ignition test occurred on May 19, 1976. Subsequent milestones included:
- June 1977: Successful participation in an independent circuit flight test.
- Late 1977: Resolution of a rudder seizure fault by optimizing component clearances and tolerances.
- 1981-1982: Comprehensive testing of reaction times and performance under vibration, all meeting requirements.
- January 1983: Vibration testing identified the turbogenerator as a primary vibration source, leading to design refinements that reduced overall vibration.
- July 19, 1984: The steering gear compartment officially passed its design certification. The project was awarded the Ministry of Aerospace Industry’s Scientific and Technological Progress Award (1984-1985).
Operational Maintenance & Safety
Regular maintenance is mandated by ship safety management codes. This includes conducting emergency steering drills at least every three months and performing periodic inspections of the entire hydraulic steering system to ensure operational integrity and readiness.
