The Ultimate Guide to Propellers: History, Design Parameters, and Working Principles
Meta Description: Explore the complete guide to marine and aircraft propellers. Learn about propeller history, key geometric parameters like pitch and diameter, working principles, and advancements like the “Guandao Propeller.”
Comprehensive Guide to Propellers: From History to Modern Design

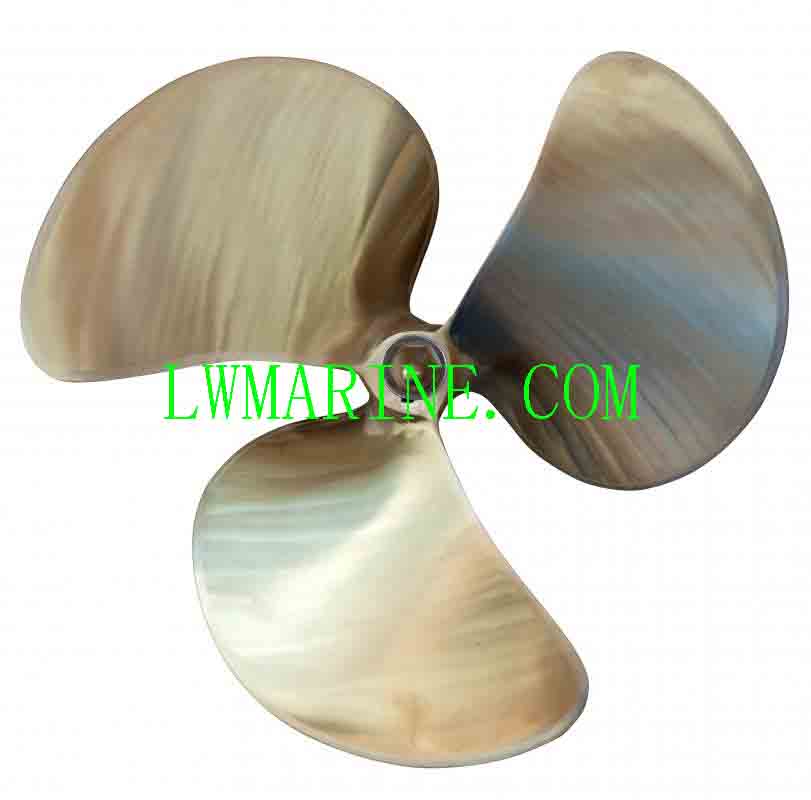

A propeller is a device that converts rotational power from an engine into linear thrust by rotating two or more blades mounted on a central hub. The blades are shaped as helicoidal surfaces to efficiently displace fluid—either air or water. This fundamental propulsion mechanism is critical for various applications, including aircraft propulsion systems, marine propulsion systems, ship propellers, boat engines, and industrial fans.
Historical Origins of the Propeller
The development of the modern propeller draws from several key innovations:
- Paddle Wheels: Early marine propulsion used paddle wheels. By mounting angled blades on a rotating hub, engineers created the prototype for the modern propeller, improving on the straight-blade paddle wheel used with steam engines.
- Windmills: The principle of windmills—converting wind torque into mechanical energy—was reversed. Applying torque to a “water mill” demonstrated the potential for propeller-driven boat movement.
- Archimedes’ Screw: Used for centuries for lifting water, this screw pump provided crucial inspiration, demonstrating that a helical structure could effectively move fluid.
A significant contribution came from the British scientist Robert Hooke. In 1683, he adapted an anemometer’s principle to measure water flow and proposed a new mechanism for ship propulsion, laying foundational work for future propeller technology.
Key Geometric Parameters of a Propeller
Understanding propeller geometry is essential for optimizing performance, efficiency, and thrust.
- Diameter (D): The most critical parameter affecting performance. A larger diameter generally increases thrust and efficiency, but it’s limited by structural constraints and the need to keep blade-tip speeds below Mach 0.7 to avoid shockwaves and efficiency loss.
- Number of Blades (B): Thrust and power coefficients are generally proportional to the number of blades. Light aircraft often use simple 2-bladed propellers. The blade count is increased when diameter is restricted to maintain proper engine-propellermatching.
- Solidity (σ): The ratio of total blade area to the disc area (πR²). Higher solidity increases thrust and power coefficients, similar to adding more blades.
- Blade Angle (β): The angle between the blade chord line and the propeller’s rotation plane. It varies along the radius, and the value at 70% of the radius is typically used as the nominal blade angle.
- Geometric Pitch (H): The theoretical distance a propeller would move forward in one revolution in a solid medium (with zero slip). It directly reflects the blade angle. Propellers are often specified by diameter and pitch (e.g., a 60×34 propeller).
- Effective Pitch (Hg): The actual distance an aircraft or vessel moves forward in one revolution of the propeller, calculated as Hg = V/n (speed divided by RPM).
- Theoretical Pitch (HT): The advance per revolution considering the acceleration of the fluid through the propeller disc, which is greater than the effective pitch.
The Development of Marine Propellers
The modern marine propeller was born from experimentation. In 1836, the British ship “SS Archimedes” used a long, wooden screw-like propeller. An accidental breakage of this screw during trials serendipitously led to a dramatic increase in speed, revealing the efficiency of a shorter, bladed design.
While early pioneers like John Stevens and John Ericsson conducted experiments, spiral-shaped “Archimedes screw” propellers gained patents in the 1820s and 1840s. The 1840s saw the first naval warships fitted with propellers, proving their superiority over paddle wheels despite initial challenges with vibration, shaft seals, and bearing wear. As steam engine technology advanced, the propeller’s advantages in efficiency and seakeeping made it the dominant marine propulsion system.
Propeller Development in China
A significant Chinese contribution to propeller technology is the “Guandao Propeller” (关刀桨), developed in the 1960s by craftsman Zhou Ting. Its blade shape resembled the blade of Guan Yu’s legendary halberd. This design, characterized by its large side inclination, unexpectedly reduced vibration and increased speed. This innovation predates and closely resembles modern “highly-skewed propellers” used worldwide in warships, ferries, and tankers for their superior performance in reducing vibration and noise.
Working Principle of a Propeller
A propeller functions as a rotating airfoil or hydrofoil. Each blade section experiences a resultant airflow from the combination of its rotational (tangential) speed and the craft’s axial speed.
- The angle between this resultant flow and the rotation plane is the inflow angle (φ).
- The angle of attack (α) is the difference between the blade angle (β) and the inflow angle (α = β – φ).
As the fluid passes over the airfoil-shaped blades, it generates aerodynamic forces: lift (ΔL) and drag (ΔD). The lift component in the axial direction produces thrust (ΔT), while the drag component creates a resistant torque (ΔP) that the engine must overcome.
To maximize efficiency, the blade angle is twisted from root to tip. This twist compensates for the variation in tangential speed across the blade, ensuring each section operates at an optimal angle of attack for high lift-to-drag ratio.
Performance is characterized by the advance ratio (J = V / nD), which represents the inflow angle at the blade tip. Thrust (T), power (P), and efficiency (η) are calculated as:
- T = Ct * ρ * n² * D⁴
- P = Cp * ρ * n³ * D⁵
- η = (J * Ct) / Cp
Where Ct is the thrust coefficient and Cp is the power coefficient. These coefficients are unique to each propeller’s geometry and are plotted against the advance ratio (J) to create performance curves, which are the primary tools for propeller selection and aircraft performance analysis.
