Yokohama Pneumatic Fender | High-Performance Marine Berthing Solutions
Product Overview

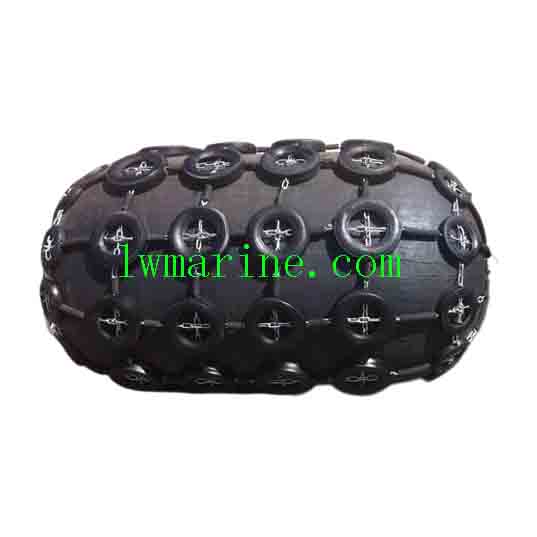

Our Pneumatic Fender, widely known in the industry as Yokohama Pneumatic Fender or vessel pneumatic rubber fender, is engineered for superior impact absorption in the most demanding marine and offshore environments. These high-pressure, floating rubber fenders are renowned for their exceptional energy dissipation, low reaction force, and versatile application, providing reliable protection for vessel hulls, docks, quays, and jetties.
Crafted from robust, marine-grade rubber and reinforced with high-tensile cord networks, our pneumatic fenders maintain consistent performance and structural integrity even after repeated compressions. They are designed to float, rising and falling with tides and vessel movements, making them an ideal, dynamic solution for variable sea conditions. All our fenders are manufactured in compliance with the latest ISO 17357 standards, ensuring international quality and reliability.
Key Features & Advantages
-
Superior Energy-to-Reaction Ratio: Delivers high energy absorption with a correspondingly low reaction force, minimizing stress on vessel hulls and marine structures.
-
Stable Oblique Performance: Maintains consistent energy absorption and uniform surface pressure even during angular or oblique compression, ensuring reliable performance in real-world berthing scenarios.
-
Durable & Resilient Construction: The high-strength cord body and marine-grade rubber compound resist abrasion, ozone, and weathering, guaranteeing a long service life with no deterioration in performance.
-
Inherent Buoyancy: Floats effortlessly on the water’s surface, automatically adjusting to tidal changes and ship movements for continuous protection.
-
Easy Deployment & Handling: Lightweight for its size and available with various chain and netting options (including vehicle/aircraft tire nets) for straightforward installation and secure mooring.
Technical Specifications & Performance Data (at 60% Compression, 0.05MPa Initial Pressure)
| Diameter x Length (mm) | Energy Absorption (KJ) | Reaction Force (KN) | Fender Body Weight (KG) ±10% |
|---|---|---|---|
| 200 x 500 | 2 | 25 | 6 |
| 300 x 500 | 3 | 32 | 12 |
| 500 x 1000 | 6 | 64 | 25 |
| 600 x 1200 | 10 | 86 | 35 |
| 700 x 1500 | 17 | 137 | 50 |
| 1000 x 1500 | 32 | 181 | 80 |
| 1000 x 2000 | 45 | 257 | 100 |
| 1200 x 2000 | 63 | 297 | 120 |
| 1350 x 2500 | 100 | 426 | 170 |
| 1500 x 3000 | 153 | 579 | 320 |
| 1700 x 3000 | 190 | 637 | 400 |
| 2000 x 3500 | 308 | 875 | 590 |
| 2500 x 4000 | 663 | 1380 | 1000 |
| 2500 x 5500 | 932 | 2010 | 1400 |
| 3000 x 5000 | 1050 | 2030 | 1800 |
| 3000 x 6000 | 1315 | 2488 | 2200 |
| 3300 x 6500 | 1814 | 3015 | 2700 |
| 3500 x 6000 | 2018 | 3286 | 2800 |
| 3500 x 6500 | 2325 | 3656 | 3200 |
| 3500 x 7000 | 2650 | 4018 | 3600 |
| 3600 x 7200 | 3180 | 4821 | 4320 |
The description/sizes may be different with goods, please check with us when order.
