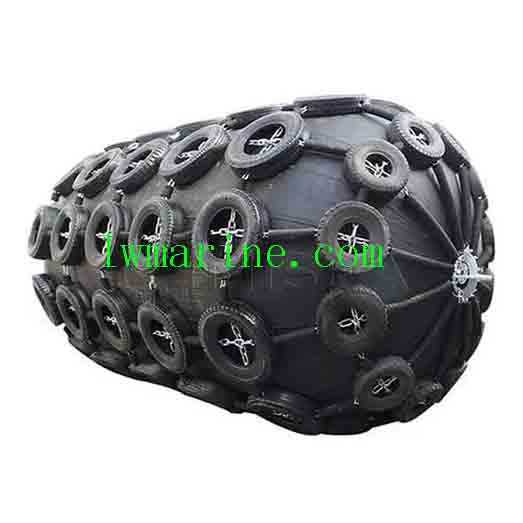

Yokohama Pneumatic Fender | Marine Berthing & Dock Protection Solutions
The Yokohama Pneumatic Fender represents the pinnacle of marine protection technology, delivering ultimate safeguarding for vessels, harbor infrastructure, docks, piers, and wharves. Engineered with heavy-duty construction that withstands both high-impact forces and aggressive marine environments, these fenders provide a proven, quality solution for high-performance marine fendering systems. Their exceptional durability makes them a cost-effective choice for intensive, long-term maritime operations.
Product Highlights & Performance Features:
-
Superior Inclined Compression Performance: Maintains 100% energy absorption efficiency even at 15-degree compression angles
-
Progressive Reaction Force Design: Gradual force increase prevents sharp pressure spikes under excessive loading conditions
-
Advanced Tire-Cord Reinforcement: Robust internal structure withstands combined forces during ship berthing and mooring operations
-
Effortless Marine Installation: Buoyancy-supported weight allows simple deployment on wharves and anchor masts
-
Heavy-Duty Marine Construction: Built to withstand harsh saltwater environments and extreme weather conditions
-
Long-Term Cost Efficiency: Durable design ensures reliable performance through years of intensive use
Installation Configuration Options:
-
Vessel-Mounted Fender Systems: Direct installation on ship hulls for offshore berthing operations
-
Dock & Quay Fender Applications: Permanent installation on port infrastructure for ship-to-dock protection
-
Dolphin Protection Systems: Specialized configurations for offshore mooring structures
Fender Sizing Guide – Small & Medium Vessels:
| Vessel Tonnage | Recommended Fender Size (D×L) | Target Vessel Types |
|---|---|---|
| 50 tons | 0.5×1.0m | Fishing Vessels |
| 100 tons | 0.7×1.5m – 1.0×1.5m | Fishing Vessels |
| 200 tons | 1.0×1.8m – 1.0×2.0m | Fishing Vessels, Tugboats |
| 300-500 tons | 1.2×2.0m – 1.5×2.5m | Fishing Vessels, Tugboats |
| 1,000 tons | 1.5×2.5m – 1.5×3.0m | Tugboats, Transport Vessels |
| 3,000 tons | 2.0×3.0m – 2.0×3.5m | Ocean Trawlers, Transport Vessels |
| 10,000 tons | 2.0×3.5m – 2.5×5.0m | Transport Vessels |
Fender Sizing Guide – Large Commercial Vessels:
| Vessel A (DWT) | Vessel B (DWT) | Berthing Velocity | Energy Absorption | Recommended Size |
|---|---|---|---|---|
| 300,000 | 200,000 | 0.15 m/s | 1230 KJ | 3.3×6.5m |
| 300,000 | 150,000 | 0.15 m/s | 1030 KJ | 3.3×6.5m |
| 300,000 | 100,000 | 0.15 m/s | 781 KJ | 3.3×6.5m |
| 200,000 | 150,000 | 0.15 m/s | 882 KJ | 3.3×6.5m |
| 200,000 | 100,000 | 0.15 m/s | 693 KJ | 3.0×6.0m |
| 200,000 | 85,000 | 0.15 m/s | 618 KJ | 3.0×5.0m |
| 100,000 | 85,000 | 0.17 m/s | 617 KJ | 3.0×5.0m |
The description/sizes may be different with goods, please check with us when order.
