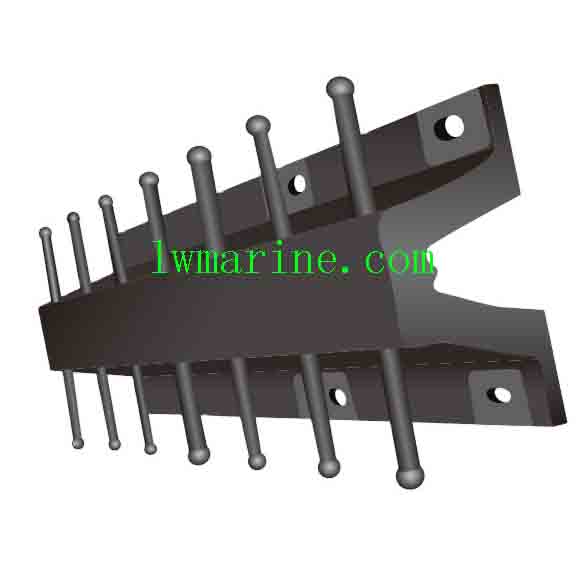

China XT Type Ladder Rubber Fender – Dual-Purpose Dock Protection & Access Solution
The XT Type Ladder Rubber Fender offers an innovative combination of vessel protection and safe personnel access for dock and harbor installations. Engineered based on the super arch-type rubber fender design with identical hole pitch patterns, this versatile product features integrated handrails for secure climbing while maintaining excellent energy absorption capabilities. Perfect for ports, terminals, and marine structures where both fender protection and ladder functionality are required.
Technical Specifications – XT Type Ladder Rubber Fender
| Specification | L1 (mm) | L (mm) | Q (mm) | C (mm) | B1 (mm) | B2 (mm) | H (mm) | J (mm) | K | n |
|---|---|---|---|---|---|---|---|---|---|---|
| H200x1500 | 1500 | 1500 | 650 | 100 | 400 | 320 | 200 | 270 | M24 | 3 |
| H200x1800 | 1800 | 1800 | 800 | 100 | 400 | 320 | 200 | 270 | M24 | 3 |
| H200x2100 | 2100 | 2100 | 750 | 100 | 400 | 320 | 200 | 270 | M24 | 4 |
| H200x2400 | 2400 | 2400 | 850 | 100 | 400 | 320 | 200 | 270 | M24 | 4 |
| H200x2700 | 2700 | 2700 | 850 | 100 | 400 | 320 | 200 | 270 | M24 | 4 |
| H200x3000 | 3000 | 3000 | 700 | 100 | 400 | 320 | 200 | 270 | M24 | 5 |
| H300x1000 | 1150 | 1000 | 870 | 100 | 400 | 320 | 200 | 270 | M24 | 2 |
| H300x1500 | 1650 | 1500 | 685 | 140 | 600 | 490 | 300 | 300 | M30 | 3 |
| H300x2000 | 2150 | 2000 | 625 | 140 | 600 | 490 | 300 | 300 | M30 | 4 |
| H300x2500 | 2650 | 2500 | 790 | 140 | 600 | 490 | 300 | 300 | M30 | 4 |
| H300x3000 | 3150 | 3000 | 725 | 140 | 600 | 490 | 300 | 300 | M30 | 5 |
| H300x3500 | 3650 | 3500 | 674 | 140 | 600 | 490 | 300 | 300 | M30 | 6 |
| H400x1000 | 1200 | 1000 | 900 | 150 | 800 | 670 | 400 | 360 | M36 | 2 |
| H400x1500 | 1700 | 1500 | 700 | 150 | 800 | 670 | 400 | 360 | M36 | 3 |
| H400x2000 | 2200 | 2000 | 635 | 150 | 800 | 670 | 400 | 360 | M36 | 4 |
| H400x2500 | 2700 | 2500 | 800 | 150 | 800 | 670 | 400 | 360 | M36 | 4 |
| H400x3000 | 3200 | 3000 | 725 | 150 | 800 | 670 | 400 | 360 | M36 | 5 |
| H400x3500 | 3700 | 3500 | 680 | 150 | 800 | 670 | 400 | 360 | M36 | 6 |
Please Note: The description might be incorrect, please contact us for confirmation.
