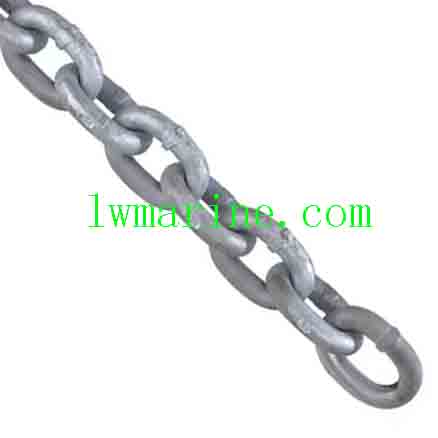

Windlass Chain Stud Grade 3
Product Specifications
▸ Material: High-performance CM690 alloy steel
▸ Nominal Diameter: 111mm (±1% manufacturing tolerance)
▸ Standard Length Options:
-
27.5 meters (Metric)
-
90 feet (Imperial)
▸ Precision Link Dimensions: -
Outside Length: 6D (666mm)
-
Outside Width: 3.6D (400mm)
Certifications & Compliance
✓ ABS ✓ Lloyd’s Register ✓ Bureau Veritas ✓ DNV GL
-
Other classification societies available upon request
Windlass Chain Technical Advantages
• Breaking Load: ≥5,700 kN (U3 Grade Standard)
• Proof Load Tested: ≥4,000 kN
• Surface Options: Mill finish, galvanized, or special coatings
Specifications subject to change. Kindly confirm all requirements prior to purchase.
