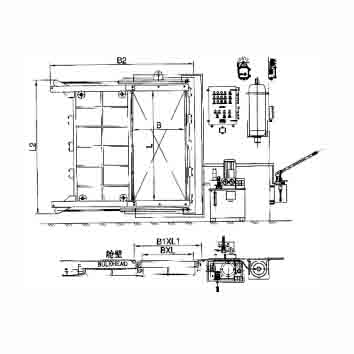

WATERTIGHT HYDRAULIC SLIDING DOOR FOR SHIP
CB10840—89
262.YHS—011
IT IS WATERTIGHT DOOR FOR BULKHEAD BELOW WATERLINE, WHICH IS USUALLY USED BETWEEN ENGINE ROOM AND SHAFT TUNNEL, OR BETWEEN ENGINE ROOM AND BOILER ROOM, OR BETWEEN ENGINE ROOM AND STEERING GEAR ROOM, ETC.
IT COMPLIES WITH CLASS RULES FOR SEA GOING SHIP AND SOLAS. THIS DOOR CAN BE POWER AND MANUALLY OPERATED FROM BOTH SIDES OF DOOR, AS WELL AS, HAND OPERATION COULD BE PROVIDED ON UPPER DECK IF NEED.
表格
| SIZE OF DOORWAY
L×B |
CUTOUT IN STEEL WALL
B1×L1 |
EXTERNAL SIZE
B2×L2 |
OPENING DIRECTION | WEIGHT KG |
|---|---|---|---|---|
| 600×1200 | 800×1400 | 1720×1480 | LEFT OPENING (L) | 765 |
| 700×1400 | 900×1600 | 1920×1680 | LEFT OPENING (L) | 872 |
| 800×1800 | 1000×2000 | 2120×2080 | LEFT OPENING (L) | 1020 |
| 900×1900 | 1100×2100 | 2320×2180 | RIGHT OPENING (R) | 1100 |
| 1000×2000 | 1200×2200 | 2520×2280 | RIGHT OPENING (R) | 1230 |
| 1200×2000 | 1400×2200 | 2920×2280 | RIGHT OPENING (R) | 1350 |
AS INDICATION:
DOORWAY SIZE 700×1400 FOR LEFT OPENING HYDRAULIC SLIDING WATERTIGHT DOOR
A60 HYDRAULIC SLIDING WATERTIGHT DOOR 700×1400-L 262.YHS-011
Note: The description may be different with the product, please contact us for quotation.
