Watertight Door
Watertight Door
262NYD007-00
With max. water pressure of 0.5MPa.

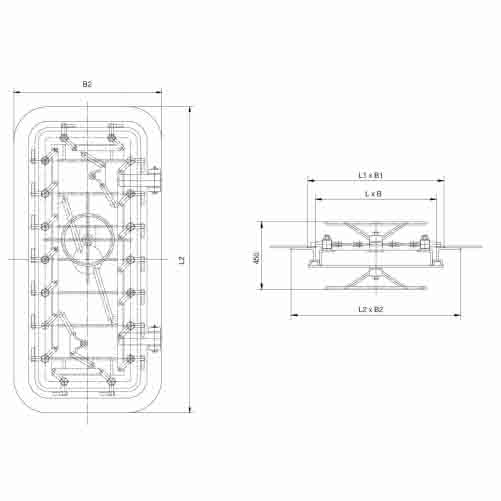

| No. | Nominal size B×L×R100 | Cutout in steel wall B1×L1×R150 | External size B2×L2×R260 |
|---|---|---|---|
| 1 | 700 × 1500 | 800 × 1600 | 1020 × 1820 |
| 2 | 700 × 1400 | 800 × 1500 | 1020 × 1720 |
| 3 | 600 × 1500 | 700 × 1600 | 920 × 1820 |
| 4 | 600 × 1400 | 700 × 1500 | 920 × 1720 |
Identification example
Watertight door with clear size of 700×1500, right opening;
Watertight door 700×1500(R) 262NYD007-00.
Note: The description may be different with the product, please contact us for quotation.
