Water-Cooled Ship Air Compressor – High-Efficiency Cooling for Demanding Marine Applications
Reliable Sea-Water Cooled Compressor for Shipboard Operations

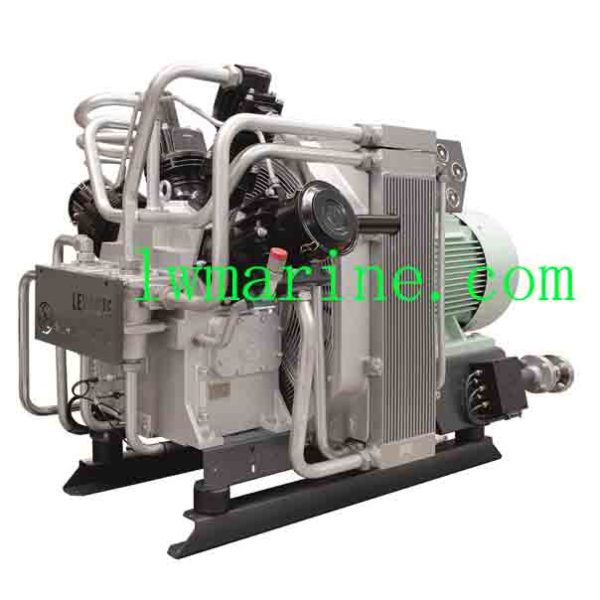

The CWF Series Water-Cooled Ship Air Compressor provides 40-60 m³/h capacity at 1.0 MPa pressure, delivering exceptional cooling performance for continuous marine operations. Engineered for harsh saltwater environments, our compressors ensure reliable compressed air supply for:
✔ Pneumatic deck tools
✔ Ship control systems
✔ Emergency breathing air
✔ Whistle & galley equipment
✔ Auxiliary ship systems
Key Advantages
Superior Cooling Technology
-
Sea-water cooling system provides 30% better heat dissipation than air-cooled models
-
Stable temperature control prevents overheating in tropical conditions
Marine-Optimized Design
-
Corrosion-resistant materials withstand saltwater exposure
-
Vibration-dampened operation (<75dB) for crew comfort
-
Compact footprint fits tight engine room spaces
Smart Operation Features
-
Manual/automatic start-stop controls
-
Automatic unloading relief system
-
Low oil pressure alarm
Technical Specifications
| Model | Capacity (m³/h) | Pressure (MPa) | Speed (r/min) | Power | Weight (kg) |
|---|---|---|---|---|---|
| CWF-40/1 | 40 | 1.0 | 780 | 5.5kW (7.5HP) | 260 |
| CWF-60/Q | 60 | 1.0 | 720 | 11kW (15HP) | 360 |
The description/sizes may be different with goods, please check with us when order.
