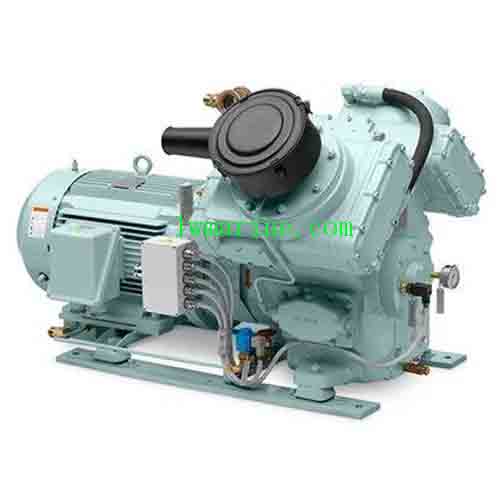

Water-Cooled Marine Air Compressor – High-Efficiency Shipboard Compressor System
Reliable Compressed Air Solution for Marine Applications
Our water-cooled marine air compressor is specifically engineered for shipboard and offshore operations, utilizing seawater cooling technology to ensure optimal thermal management in demanding marine environments. This heavy-duty marine compressor delivers consistent performance while withstanding corrosive saltwater conditions.
Key Features & Benefits
✔ Advanced Seawater Cooling System – Efficiently dissipates heat using marine-grade heat exchangers for enhanced durability in high-temperature operations
✔ Compact & Space-Saving Design – Lightweight construction (from 330kg) with small footprint ideal for limited engine room spaces
✔ High-Pressure Performance – Delivers up to 14.7 MPa working pressure for critical marine applications
✔ Corrosion-Resistant Components – Built with marine-certified materials to withstand harsh saltwater environments
✔ Energy-Efficient Operation – Optimized seawater circulation system reduces power consumption
Technical Specifications
| Model | Capacity (m³/h) | Working Pressure (MPa) | Speed (r/min) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| CZ-0.42/150 | 0.42 | 14.7 | 1460 | 330 | 1100×500×950 |
| CZ-0.43/60 | 0.43 | 6.0 | 1460 | 330 | 1100×500×950 |
Marine Compressor System Components
-
High-Efficiency Compressor Unit – Robust piston design for reliable air compression
-
Seawater Cooling Circuit – Includes:
-
Marine-grade centrifugal pump
-
Corrosion-resistant heat exchanger
-
Precision flow control valves
-
-
Integrated Monitoring System – Ensures safe operating temperatures and optimal performance
Ideal Marine Applications
-
Shipboard air systems
-
Offshore platform operations
-
Marine engine starting systems
-
Diving support vessels
-
Naval and commercial shipping
The description/sizes may be different with goods, please check with us when order.
