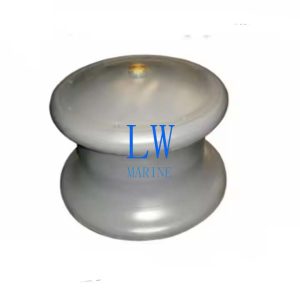

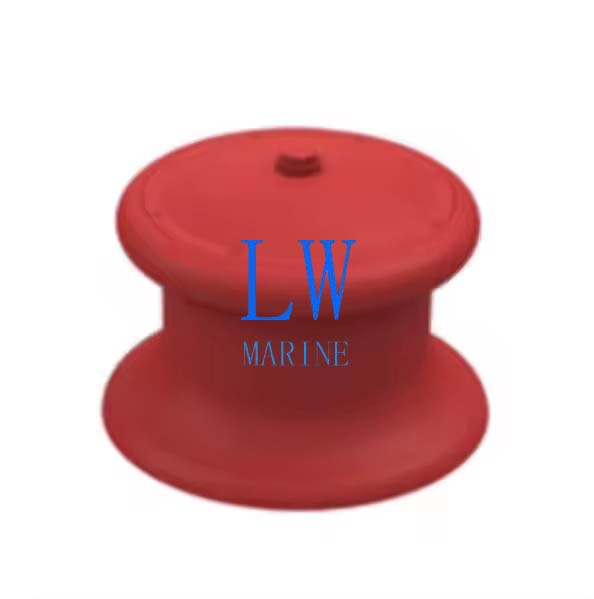

DIN 81906 Warping Roller – Precision German-Engineered Rope Handling Solution
Engineered for Professional Marine Applications
Our DIN 81906 compliant Warping Roller delivers:

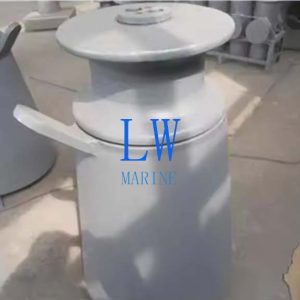

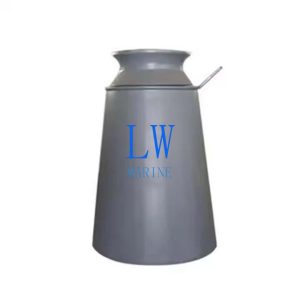

✔ Seamless integration with DIN 81907 conical pedestals
✔ Smooth rope guidance for mooring and towing operations
✔ German-standard quality for reliable performance
Key Features & Benefits:
• Premium Cast Steel Construction – Exceptional durability
• Precision Manufacturing – Strict DIN 81906-1999 compliance
• Global Certifications – CCS, ABS, BV, LR, NK, RINA approved
• Modular Compatibility – Pairs perfectly with DIN 81907 pedestals
Technical Specifications:
-
Standard: DIN 81906 (1999)
-
Material: High-grade casting steel
-
Modular Design: Compatible with conical pedestal systems
Parameters:
| Type | d1 | d3 | d4 | d14 | h1 | l1 | r1 | z1 | Maximum Trailed Load | Weight |
| (KN) | (kg) | |||||||||
| 1 | 160 | 210 | 195 | 60 | 80 | 50 | 25 | 1.5 | 10 | 12 |
| 2 | 200 | 265 | 245 | 70 | 102 | 32 | 2.5 | 20 | 18 | |
| 3 | 250 | 330 | 300 | 85 | 126 | 42 | 32 | 33 | ||
| 5 | 320 | 420 | 390 | 106 | 160 | 55 | 50 | 68 | ||
| 8 | 400 | 530 | 490 | 125 | 208 | 60 | 73 | 80 | 136 | |
| 12 | 450 | 610 | 560 | 160 | 256 | 85 | 95 | 125 | 225 | |
| 20 | 500 | 640 | 620 | 190 | 278 | 100 | 111 | 200 | 336 | |
| 32 | 560 | 780 | 740 | 230 | 348 | 150 | 125 | 4.5 | 320 | 625 |
The description/sizes may be different with goods, please check with us when order.
