W-Type Marine Air Compressor – High-Performance Engine Starting Solution
CWF-60/30 Model: Reliable 3.0MPa Compressor for Marine Diesel Engines

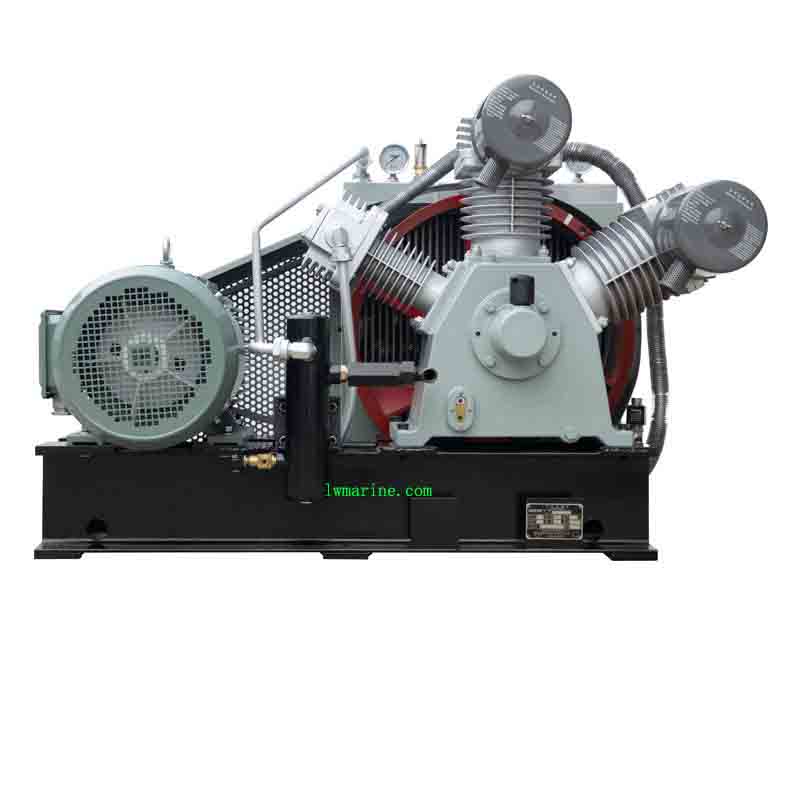

The W-Type Air Compressor (Model CWF-60/30) is engineered specifically for marine diesel engine starting systems, delivering 60 m³/h capacity at 3.0 MPa pressure. Its unique W-type horizontal configuration combines air-cooled efficiency with marine-grade durability for smooth operation in demanding shipboard environments.
Key Features & Benefits
✔ W-Type Piston Design – Three-cylinder configuration ensures balanced operation and reduced vibration
✔ High-Efficiency Air Cooling – Eliminates water system complexity while maintaining optimal temperatures
✔ Marine-Optimized Performance – Specially engineered for diesel engine starting requirements
✔ Compact Footprint – Space-saving dimensions (1310×714×810mm) for easy engine room installation
✔ Custom Control Options – Available with temperature monitoring, pressure regulation, and dual-machine control
Technical Specifications
| Model | Capacity (m³/h) | Pressure (MPa) | Speed (r/min) | Power | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| CWF-60/30 | 60 | 3.0 | 1000 | 15kW (20HP) | 1310×714×810 | 366 |
The description/sizes may be different with goods, please check with us when order.
