2.5 m³/h Vessel Oily Water Separator | YWC-2.50 Type | IMO MEPC.107(49) Certified | 3-Stage Filtration System
Product Overview

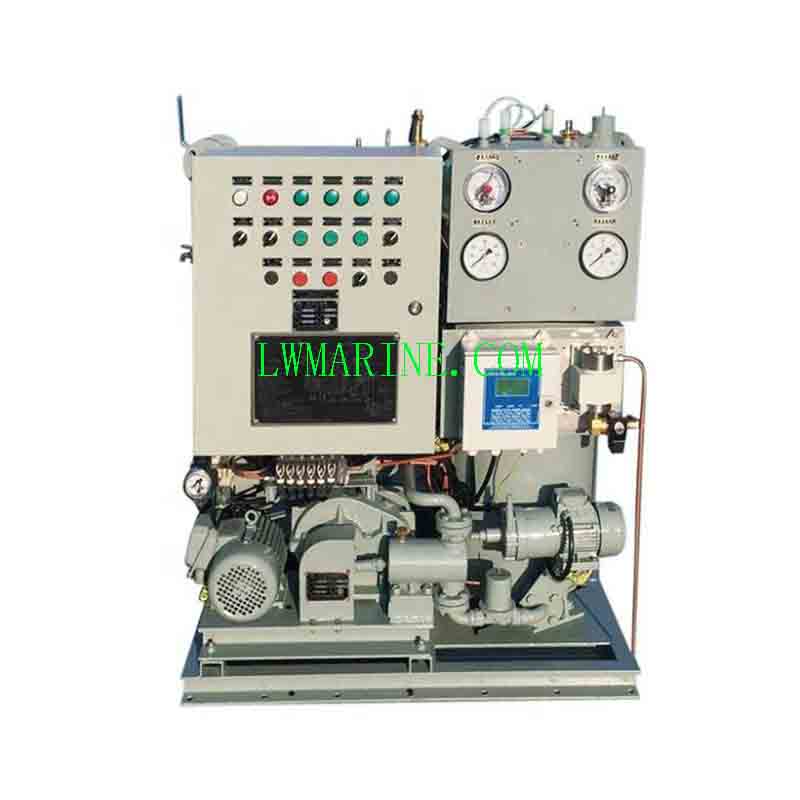

The YWC-2.50 Vessel Oily Water Separator is a high-efficiency, compact bilge water treatment system designed for small to medium-sized vessels. Utilizing an advanced three-stage separation process, this unit ensures reliable processing of oily bilge water to meet the stringent IMO MEPC.107(49) discharge standard of ≤15ppm. Its robust design, complete automation, and multi-voltage capability make it an ideal solution for global maritime operations.
Key Features & Benefits
-
Advanced Three-Stage Treatment: Combines coalescence, fiber filtration, and membrane technology for superior oil removal
-
IMO MEPC.107(49) Compliant: Guarantees international regulatory compliance for vessel discharge
-
Compact & Space-Saving Design: Optimized dimensions (1900×1120×1900mm) for easy engine room installation
-
Complete Automation: Integrated electric control box with oil content monitor, pressure and temperature controllers
-
Electric Heating System: 6kW heater ensures consistent performance in varying climates
-
Global Power Compatibility: Supports AC 380V-480V, 50/60Hz electrical systems
-
IACS Certification Ready: Available with all major classification society approvals
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YWC-2.50 |
| Rated Capacity | 2.5 m³/h |
| Discharge Oil Content | ≤15 ppm |
| Electric Heater Power | 6 kW |
| Electric Motor Power | 1.5 kW |
| Electrical System | Multi-voltage (380V-480V, 50/60Hz, 3φ) |
| Suction Head | ≤6m H₂O |
| Discharge Pressure | 5-10m H₂O |
| Dimensions (L×W×H) | 1900 × 1120 × 1900 mm |
| Base Standard | 8# |
| Dry Weight | 1500 kg |
| Wet Weight | 2800 kg |
| Applicable Vessel Size | 50-100 KDWT |
Three-Stage Separation Technology
-
First Stage: Cone wave plate gravity separation and coalescence for bulk oil removal
-
Second Stage: Dual-layer fiber filtration for secondary purification
-
Third Stage: Membrane permeation for final polishing to ≤15ppm standard
Complete System Components
-
Primary coalescer separator
-
Secondary filter unit
-
Tertiary membrane module
-
Electric control box with automation
-
Oil content monitor (15ppm)
-
MONO transfer pump
-
Pneumatic control valves
-
Pressure and temperature controllers
-
6kW electric heating system
Available IACS Certifications
-
ABS (American Bureau of Shipping)
-
BV (Bureau Veritas)
-
CCS (China Classification Society)
-
DNV (Det Norske Veritas)
-
GL (Germanischer Lloyd)
-
LR (Lloyd’s Register)
-
NK (Nippon Kaiji Kyokai)
-
RINA (Registro Italiano Navale)
-
IRS (Indian Register of Shipping)
-
RMRS (Russian Maritime Register of Shipping)
Applications
-
Small to medium commercial vessels (50-100 KDWT)
-
Offshore support vessels
-
Tugs and workboats
-
Research and survey vessels
-
Fishing fleets and passenger ferries
The description/sizes may be different with goods, please check with us when order.
