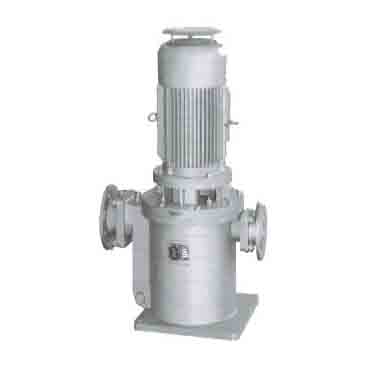

CLZ/2 Type Vertical Multi-stage Double-outlet Self-priming Centrifugal Pump
I. Overview
The CLZ/2 type marine vertical self-priming multi-stage double-outlet centrifugal pump integrates multiple functions such as cooling, fire-fighting, ballast, and loading. It is a versatile pump suitable for various ships and naval vessels. The product features a compact size and excellent self-priming performance (no external self-priming device required).
II. Model Description
Example: 150 CLZ – 17 / 2 A
- First modification of the impeller (B indicates the second modification, and so on by analogy).
- The pump has 2 stages.
- The ratio of the first-stage impeller is obtained by dividing by 10 and rounding.
- Marine vertical self-priming centrifugal pump.
- Suction inlet diameter (mm).
III. Main Technical Performance Parameters
| Model | Flow Rate (m³/h) | Lift (m) | Rotating Speed (r/min) | Motor Power (Kw) | Required Net Positive Suction Head (m) | Pump Mass (kg) |
|---|---|---|---|---|---|---|
| 125CLZ-5/2 | 51/51 | 30/65 | 22 | 3.5 | 518 | |
| 125CLZ-7/2 | 80/40 | 25/55 | 18.5 | 3.5 | 524 | |
| 125CLZ-9/2 | 116/58 | 24/61 | 22 | 4.1 | 548 | |
| 125CLZ-9/2A | 141/62 | 25.5/59 | 22 | 4.0 | 540 | |
| 125CLZ-9/2B | 112/54 | 15/52 | 18.5 | 4.1 | 526 | |
| 125CLZ-10/2 | 110/50 | 20/35 | 15 | 4.2 | 488 | |
| 150CLZ-6/2 | 95/95 | 36.5/86 | 55 | 4.9 | 806 | |
| 150CLZ-6/2A | 95/70 | 32/80 | 37 | 4.9 | 724 | |
| 150CLZ-17/2 | 149/95 | 27.5/77 | 1450 | 45 | 5.1 | 778 |
| 150CLZ-17/2A | 141/95 | 16.5/60.5 | 37 | 5.1 | 736 | |
| 150CLZ-15/2 | 199/182 | 33/79 | 90 | 5.0 | 1190 | |
| 150CLZ-12/2 | 199/99 | 23.5/70 | 45 | 5.1 | 772 | |
| 150CLZ-7/2 | 124/120 | 33.5/77 | 55 | 4.8 | 928 | |
| 150CLZ-7/2A | 215/120 | 23.5/65 | 45 | 4.9 | 840 | |
| 150CLZ-7/2B | 199/108 | 17/60.5 | 45 | 4.9 | 792 | |
| 200CLZ-13/2 | 257/124 | 24/68.5 | 55 | 4.3 | 936 | |
| 250CLZ-9/2 | 348/174 | 22/71.5 | 75 | 4.6 | 1080 | |
| 250CLZ-9/2A | 265/166 | 14.5/62 | 75 | 5.2 | 916 | |
| 250CLZ-19/2 | 389/182 | 22/70 | 75 | 5.4 | 1110 |
Attention please: The description might be incorrect, please contact us for confirmation.
