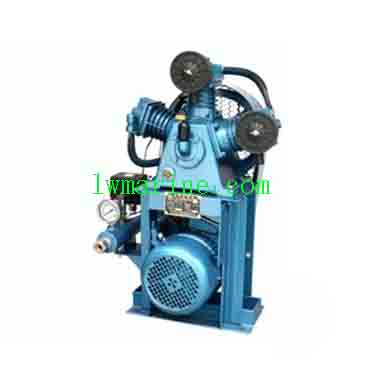

Vertical Marine Air Compressors – Space-Saving Power for Ships
Compact & Efficient Vertical Compressors for Marine Applications
Our vertical marine air compressors are space-optimized solutions designed specifically for confined shipboard installations. These high-efficiency compressors deliver 1.0 MPa compressed air for pneumatic tools, control systems, and deck equipment while occupying minimal floor space.
Key Features & Benefits:
✔ Vertical Space-Saving Design: 50% smaller footprint than horizontal models
✔ Marine-Grade Construction: Corrosion-resistant materials for saltwater environments
✔ Complete Air Treatment: Built-in intercoolers, aftercoolers & moisture separators
✔ Energy Efficient: Optimized motor systems reduce power consumption
✔ Reliable Performance: Designed for continuous duty in harsh conditions
Technical Specifications
Vertical Compressor Models:
| Model | Capacity (m³/h) | Pressure (MPa) | Power (kW) | Speed (RPM) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| CVF-60/10 | 60 | 1.0 | 7.5 | 650 | 1110×680×820 | 310 |
| CVF-90/10 | 90 | 1.0 | 15 | 720 | 1250×600×710 | 410 |
| CVF-120/10 | 120 | 1.0 | 18.5 | 750 | 1200×620×850 | 430 |
The description/sizes may be different with goods, please check with us when order.
