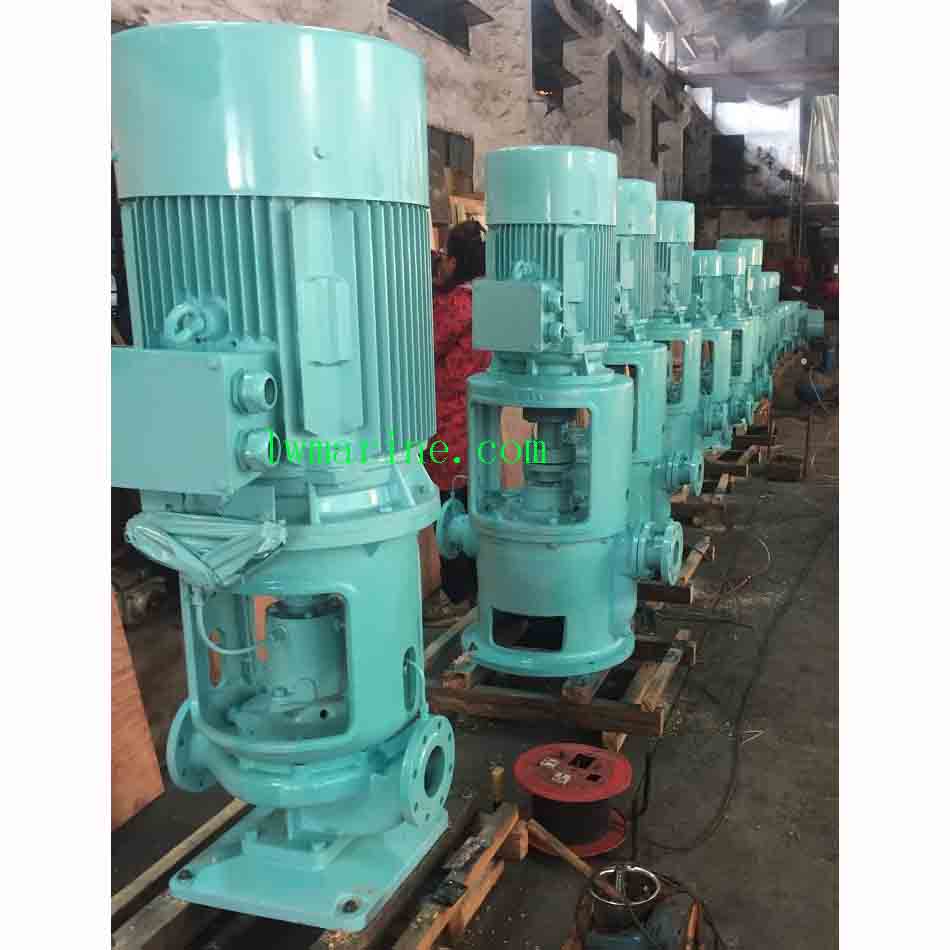

Vertical Centrifugal Pumps for Ship
The Vertical Centrifugal Pumps for Ship designed to meet international ISO standards. Engineered as a single-stage, single-suction pump with horizontal inlet and vertical outlet, it ensures efficient and stable fluid transfer across a wide range of marine and industrial uses. Its innovative flange connection between the motor and pump shaft allows for easy maintenance and disassembly, making it an upgraded and improved alternative to CSG/CSW-type pumps.
Ideal for marine applications such as ballast transfer, bilge pumping, drainage, engine cooling, and firefighting systems, the CLH pump also excels in land-based environments including petrochemical pipelines, municipal water supply, high-rise building pressure boosting, and industrial circulation systems. It handles fluids with temperatures up to 75°C.
Key Features & Benefits:
-
Compliant with ISO Standards: Designed and manufactured in accordance with international requirements.
-
Versatile Application Range: Suitable for marine, industrial, municipal, and building management systems.
-
Easy Maintenance: Flange-connected motor and pump shaft simplify inspection and part replacement.
-
Robust and Reliable Performance: Improved hydraulic design ensures high efficiency and durability.
-
Space-Saving Vertical Structure: Ideal for installations with limited footprint.
Performance Parameters (50Hz / 60Hz):
| Model | Capacity (m³/h) | Head (m) | Speed (rpm) | Motor Power (kW) | Efficiency (%) | NPSHr (m) |
|---|---|---|---|---|---|---|
| CLH40-100 | 2.2 ~ 4.2 | 2.8 ~ 3.3 | 1400 | 0.12 | 48 | 2.5 |
| CLH40-125 | 2.2 ~ 4.2 | 4.5 ~ 5.5 | 1400 | 0.18 | 40 | 2.5 |
| CLH40-160 | 2.2 ~ 4.2 | 7.5 ~ 8.5 | 1400 | 0.25 | 36 | 2.5 |
| CLH40-200 | 2.2 ~ 4.2 | 12 ~ 13 | 1450 | 0.55 | 31 | 2.5 |
| CLH40-250 | 2.2 ~ 4.2 | 18.5~20.5 | 1450 | 1.1 | 25 | 2.5 |
Note: The description might be incorrect, please contact us for confirmation.
