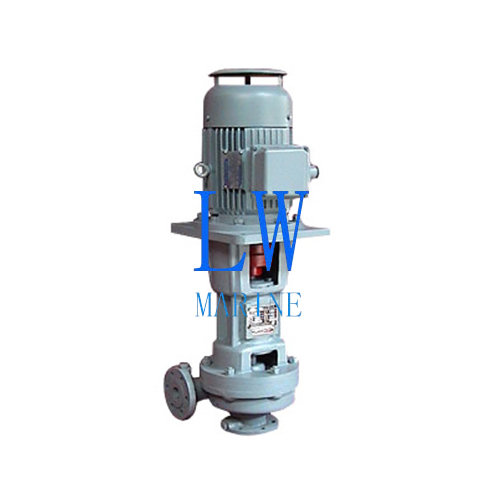

Vertical Centrifugal Pump CL Series
Product Overview:
The CL Series vertical centrifugal pump is engineered for reliable marine applications, offering efficient fluid transfer capabilities for various onboard systems.
Primary Applications:
• Ballast water transfer operations
• Engine cooling systems
• Fire control and suppression systems
• General seawater/freshwater circulation
Performance Specifications:
-
Fluid Compatibility: Seawater, fresh water, and non-corrosive liquids
-
Maximum Fluid Temperature: 70°C (158°F)
-
Orientation: Vertical design for space-efficient installation
Key Features:
✓ Compact vertical footprint saves valuable engine room space
✓ Corrosion-resistant construction for marine environments
✓ Reliable performance in critical vessel systems
✓ Suitable for both freshwater and seawater applications
Parameters:
| Model | Lift | Rev | Flow rate | Motor |
| H | speed | Q | power | |
| (m) | r/min | m3/h | (KW) | |
| 40CL-42 | 42 | 2890 | 15 | 4 |
| 40CL-42A | 40 | 2880 | 12 | 3 |
| 40CL-50 | 50 | 2890 | 10 | 4 |
| 40CL-50A | 45 | 2880 | 8 | 3 |
| 40CL-60 | 60 | 2890 | 10 | 4 |
| 40CL-60A | 55 | 2880 | 8 | 3 |
| 50CL-30 | 30 | 2890 | 20 | 4 |
| 50CL-30A | 24.5 | 2880 | 18 | 3 |
| 65CL-45 | 45 | 2900 | 30 | 7.5 |
| 65CL-45A | 37 | 2900 | 27 | 5.5 |
| 65CL-65 | 65 | 2930 | 25 | 15 |
| 65CL-65A | 58 | 2930 | 21 | 11 |
| 80CL-30 | 30 | 2900 | 50 | 7.5 |
| 80CL-30A | 25 | 2900 | 45 | 5.5 |
| 80CL-35 | 35 | 2900 | 50 | 7.5 |
| 80CL-65 | 65 | 2930 | 50 | 18.5 |
| 80CL-65A | 56 | 2930 | 46 | 15 |
| 80CL-65B | 50 | 2930 | 40 | 11 |
| 100CL-30 | 30 | 2930 | 100 | 15 |
| 100CL-30A | 24.5 | 2930 | 90 | 11 |
| 100CL-45 | 45 | 2940 | 100 | 22 |
Attention: Product images and descriptions are representative. Actual items may differ – please contact us to confirm exact specifications before ordering.
