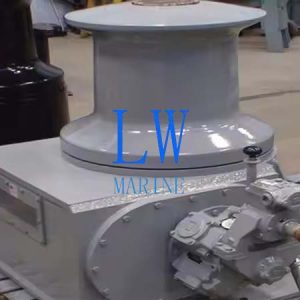

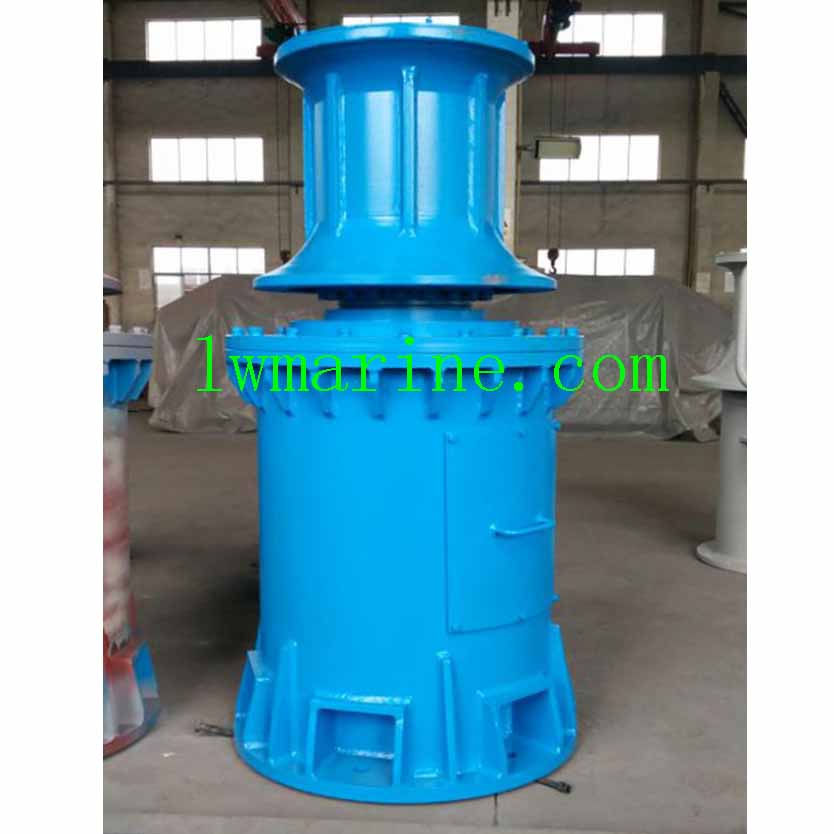

Vertical Capstan Product Overview
The Anchor Vertical Capstan is a multi-functional deck machinery unit designed for anchor handling, mooring, and heaving operations, compliant with ISO 4568:1986 standards. It is available in electric, hydraulic, manual, and diesel-driven configurations to suit various vessel requirements.

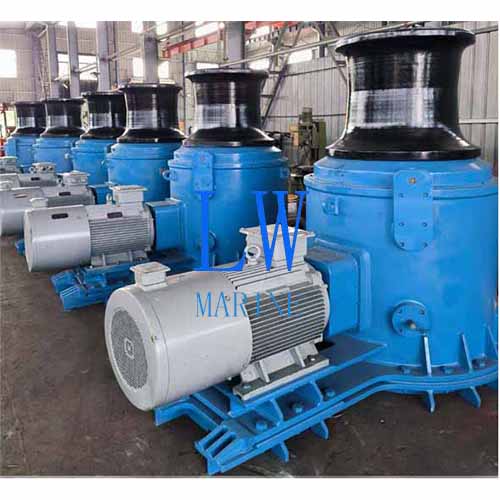

Vertical Capstan Design Variations
-
Systematic Double-Chain Anchor Winch (Type A)
-
Single-Chain Anchor Winch (Type B)
-
Anchor Capstan (Type E)
Drive System Classification
| Code | Drive Type |
|---|---|
| D | Electric Motor |
| Y | Hydraulic Power |
| S | Manual Operation |
| C | Diesel Engine |
Parameters:
| Type | chain diam | over loading | loading support | working load | nominal speed | mooring load | |||
| (mm) | AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | m/min | Kn | |
| YE-17.5 | 17.5 | 19.5 | 21.9 | 80 | 115 | 13 | 14.6 | 9 | 10 |
| YE-19 | 19 | 23 | 25.8 | 95 | 135 | 15.3 | 17.2 | 9 | 15 |
| YE-20 | 20 | 26.9 | 30 | 110 | 157 | 17.9 | 20 | 9 | 20 |
| YE-22 | 22 | 30.9 | 34.5 | 126 | 180 | 20.6 | 23 | 9 | 20 |
| YE-24 | 24 | 36.8 | 41.1 | 149 | 214 | 24.5 | 27.4 | 9 | 20 |
| YE-26 | 26 | 43.1 | 48.2 | 175 | 250 | 28.7 | 32.1 | 9 | 20 |
| YE-28 | 28 | 50 | 55.8 | 202 | 289 | 33.3 | 37.2 | 9 | 20 |
| YE-30 | 30 | 57.5 | 64.2 | 231 | 330 | 38.3 | 42.8 | 9 | 30 |
| YE-32 | 32 | 65.3 | 72.9 | 261 | 374 | 43.5 | 48.6 | 9 | 30 |
| YE-34 | 34 | 73.3 | 82.4 | 294 | 421 | 49.1 | 54.9 | 9 | 40 |
| YE-36 | 36 | 82.7 | 92.4 | 329 | 470 | 55.1 | 61.6 | 9 | 30 |
| YE-38 | 38 | 92.1 | 103.4 | 365 | 522 | 61.4 | 68.9 | 9 | 40 |
| YE-40 | 40 | 102 | 114 | 402 | 576 | 68 | 76 | 9 | 40 |
Product specifications and dimensions are subject to manufacturing variations. Please confirm all details with our team before placing your order.
