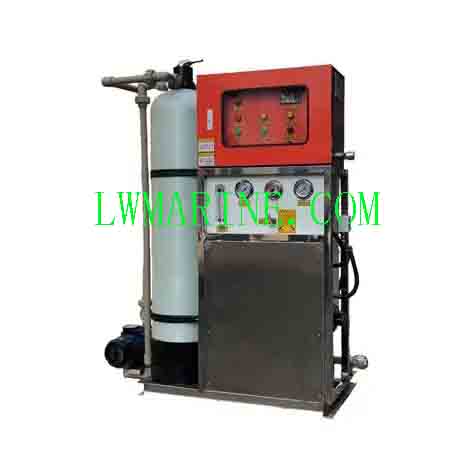

Vacuum Flash Type Fresh Water Generator

Vacuum Flash Type Fresh Water Generator

Title: Advanced Seawater Desalination System | Reverse Osmosis Technology | Portable & Reliable Solution

Introduction to Our Seawater Desalination System
Seawater contains high levels of salt, making it unsuitable for direct consumption or use. Our advanced seawater desalination plant utilizes two primary methods—distillation and reverse osmosis—to transform seawater into clean, drinkable water. While distillation is suited for large-scale applications in energy-rich regions, our Vacuum Flash Type Fresh Water Generator offers a highly efficient, low-energy solution with exceptional desalination rates. This system is ideal for various applications, providing fresh water reliably and economically.

Key Features & Benefits:

High-Efficiency RO Membranes: Equipped with premium-quality, internationally certified seawater RO membranes, ensuring high salt rejection rates, stable performance, and reliable operation.
Advanced Pump System: Features a high-pressure pump from a globally recognized brand, specifically designed for seawater desalination, complete with high and low-pressure protection for enhanced safety.
Pure & Safe Output: The treated water meets national drinking water standards (GB5749-85) without the use of chemicals, delivering fresh, great-tasting water directly from the system.
Portable & User-Friendly: Designed for ease of use, portability, and reliability, our system integrates cutting-edge technology with practical functionality, making it an ideal solution for diverse environments.

Main Configurations:
Our seawater desalination units are available in multiple models, including HS-SWRO-5m³ and HS-SWRO-10m³, with the following core components:

Core Filtration: USA DOW 4040 seawater desalination membranes (2 pcs for 5m³/day, 4 pcs for 10m³/day).
Pretreatment: Sand filter and dual 5-micron PP filters to remove larger impurities.
Post-Treatment: 14W America Hanovia UV sterilizer to guarantee safe, bacteria-free output water.
Pump Systems: High-quality stainless steel raw water pump and SS316L high-pressure pump.
Monitoring Instruments: Inlet pressure gauges, freshwater flow meter, and Korida online conductivity meter for real-time water quality monitoring.
Optional Add-ons: Liquid level switch, pressure tank, and more tailored to specific needs.

Consumable Replacement Guide:

Quartz Sand: Approximately every year.
5-Micron PP Filter: Approximately every 3 months.
USA DOW RO Membrane: Approximately every 3 years.
*Replacement cycles are based on standard operating conditions (20 hours/day).*

Technical Data for HS-SWRO-10m³ Model:
