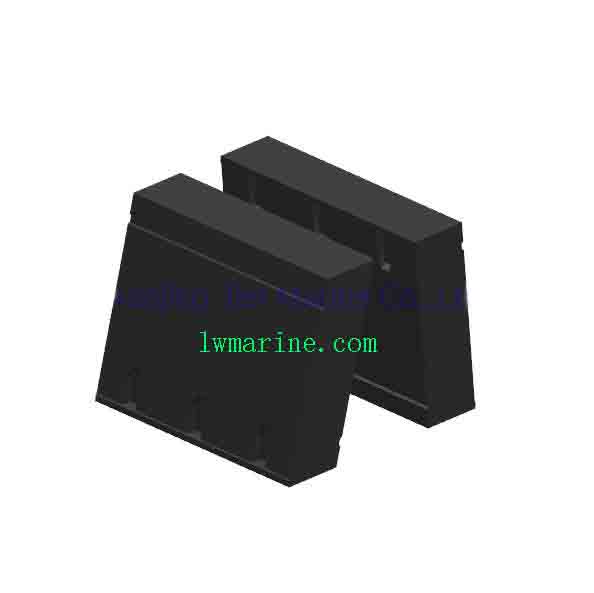

Unit Element Rubber Fender – Modular Marine Protection System
Flexible, High-Performance Fender Solution for All Dock Configurations
Our Unit Element Rubber Fender offers unparalleled versatility through their innovative modular design, providing customizable protection for any marine application. With decades of proven performance worldwide, these fenders combine simple installation with exceptional durability for ports, docks, and marine structures.
Key Advantages
🧩 Modular Design – Individual units allow easy replacement and customization
🛡️ Superior Impact Protection – High energy absorption with low hull pressure
⚓ Dual Installation Options – Mount horizontally or vertically as needed
🌊 Marine-Grade Durability – Resists corrosion, UV, and extreme weather
🔧 Quick Maintenance – Replace single elements without full system removal
Technical Specifications
-
Construction:
-
High-resilience rubber elements
-
Steel cord/synthetic fiber reinforcement
-
Optional UHMW-PE face pads or steel frames
-
-
Design Features:
-
Hollow cylindrical/rectangular elements
-
Symmetrical/asymmetrical fixing options
-
Excellent shear resistance
-
-
Performance:
-
Energy absorption: 50-300 kNm/m
-
Compression: Up to 60% deflection
-
Hull pressure: <200 kN/m²
-
-
Customization:
-
Various sizes from 300mm to 2000mm
-
Multiple hardness grades available
-
The description/sizes may be different with goods, please check with us when order.
