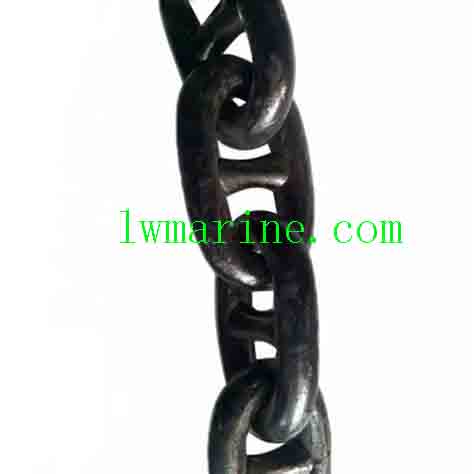

U2 Stud Link Anchor Chain – The Industry Standard for Secure Mooring
Robust Construction for Reliable Marine Anchoring
Our U2 grade stud link anchor chain features a reinforced center stud design that provides superior strength-to-weight ratio compared to studless alternatives. Manufactured through precision forging, casting, or welding processes, these chains deliver dependable performance in the most demanding marine environments.
Key Structural Advantages:
• Stud-Reinforced Links – Enhances structural integrity and prevents link deformation under load
• Optimized Weight Distribution – The stud design improves chain handling characteristics
• Standardized Shackle Lengths – Available in 25-27.5 meter sections for easy installation
• Secure Connection System – Kenter shackles or joining links ensure reliable chain assembly
Technical Specifications:
| Parameter | Specification |
|---|---|
| Grade | U2 (Standard Marine Grade) |
| Construction | Hot-forged stud links |
| Materials | High-tensile carbon steel |
| Diameter | Range from 12.5mm to 162mm |
| Finish | Black painted or hot-dip galvanized |
| Certification | ABS, BV, DNV-GL, LR, NK, CCS, RINA |
Parameters:
| Breaking Test Load | Approx. Mass (kg/ 27.5m) | Nominal | Proof Test Load |
| (KN) | Chain Diameter | (KN) | |
| (mm) | |||
| 92 | 105 | 12.5 | 66 |
| 116 | 142 | 14 | 82 |
| 150 | 175 | 16 | 107 |
| 179 | 194 | 17.5 | 127 |
| 211 | 236 | 19 | 150 |
| 244 | 269 | 20.5 | 175 |
| 280 | 322 | 22 | 200 |
| 332 | 370 | 24 | 237 |
| 389 | 431 | 26 | 278 |
| 449 | 496 | 28 | 321 |
| 514 | 564 | 30 | 368 |
| 583 | 635 | 32 | 417 |
| 655 | 712 | 34 | 468 |
| 732 | 800 | 36 | 523 |
| 812 | 887 | 38 | 581 |
| 896 | 1032 | 40 | 640 |
| 981 | 1084 | 42 | 703 |
| 1080 | 1197 | 44 | 769 |
| 1170 | 1310 | 46 | 837 |
| 1270 | 1438 | 48 | 908 |
| 1370 | 1546 | 50 | 981 |
| 1480 | 1661 | 52 | 1060 |
| 1590 | 1791 | 54 | 1140 |
| 1710 | 1926 | 56 | 1220 |
| 1810 | 2086 | 58 | 1290 |
| 1940 | 2249 | 60 | 1380 |
| 2060 | 2361 | 62 | 1470 |
| 2190 | 2516 | 64 | 1560 |
| 2310 | 2676 | 66 | 1660 |
| 2450 | 2885 | 68 | 1750 |
| 2580 | 3010 | 70 | 1840 |
| 2790 | 3274 | 73 | 1990 |
| 3010 | 3548 | 76 | 2150 |
| 3160 | 3737 | 78 | 2260 |
| 3380 | 4030 | 81 | 2410 |
| 3610 | 4334 | 84 | 2580 |
| 3850 | 4650 | 87 | 2750 |
| 4090 | 4976 | 90 | 2920 |
| 4260 | 5199 | 92 | 3040 |
| 4510 | 5544 | 95 | 3230 |
| 4680 | 5780 | 97 | 3340 |
| 4940 | 6143 | 100 | 3530 |
| 5120 | 6398 | 102 | 3660 |
| 5390 | 6773 | 105 | 3850 |
| 5570 | 7033 | 107 | 3980 |
| 5940 | 7569 | 111 | 4250 |
| 6230 | 7983 | 114 | 4440 |
| 6510 | 8409 | 117 | 4650 |
| 6810 | 8863 | 120 | 4850 |
| 7000 | 9143 | 122 | 5000 |
| 7200 | 9598 | 124 | 5140 |
| 7490 | 9908 | 127 | 5350 |
| 7800 | 10382 | 130 | 5570 |
| 8000 | 10620 | 132 | 5720 |
| 8510 | 11439 | 137 | 6080 |
| 9030 | 12289 | 142 | 6450 |
| 9560 | 13170 | 147 | 6840 |
| 10100 | 14081 | 152 | 7220 |
| 10640 | 15023 | 157 | 7600 |
| 11180 | 15995 | 162 | 7990 |
The description/sizes may be different with goods, please check with us when order.
