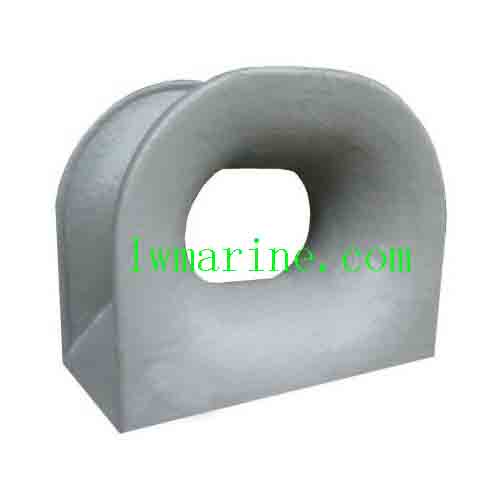

Type C Deck Mounted Chock

China DIN81915-1998 Type C Deck Mounted Chock – Heavy-Duty Marine Mooring Solution

Engineered to meet the rigorous German DIN81915-1998 standard, our Type C Deck Mounted Chock is a widely trusted marine component designed for safe and efficient mooring operations. Ideal for various vessels—including tugs, cargo ships, tankers, and military ships—this chock is commonly installed at the bow and stern to provide reliable mooring line guidance. Manufactured with precision and durability in mind, it ensures smooth operation and long-lasting performance in demanding maritime environments.

Product Features & Quality Assurance

International Certification: Compliant with major classification societies including BV, CCS, DNV, and ABS. Mill certificates provided upon request.
Smooth Surface Finish: All contact surfaces are carefully finished to prevent rope wear and ensure safe mooring line handling.
Easy Installation: Designed for straightforward deck mounting, reducing installation time and labor costs.
Reliable After-Sales Support: Dedicated customer service and technical assistance to support global clients.
Versatile Configuration: Available in single chock (C2–C8) and double chock (C12–C32) types according to Panama Rules, offering flexibility for different vessel requirements.

Technical Specifications & Size Chart

Product No.	SWL (kN)	Dimensions (mm)	Mass (kg)
		L	W	H	H1	A	B
DMC-001	10	285	160	250	125	125	90	19.5
DMC-002	20	360	200	316	158	160	115	29
DMC-003	30	450	250	390	195	200	140	48
DMC-004	50	550	300	480	240	250	180	85
DMC-005	80	680	360	586	293	320	225	136
DMC-006	125	840	440	710	355	400	270	211
DMC-007	200	1020	520	840	420	500	320	256
DMC-008	320	1300	700	1100	550	600	400	840
