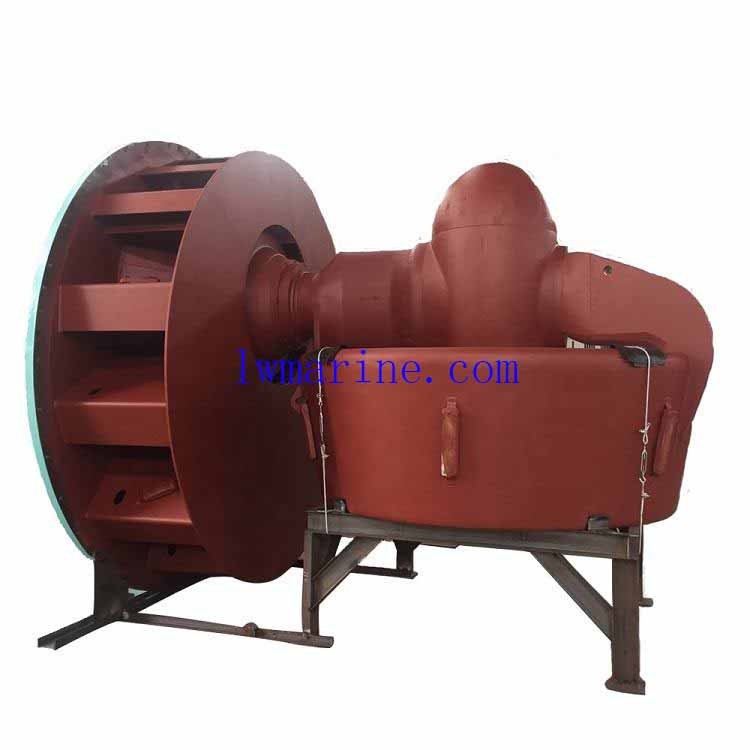

Tugboat Bow Thruster System
Our Tugboat Bow Thruster System is meticulously crafted to significantly boost the maneuverability and towing prowess of tugboats. It empowers operators with precise control during the intricate task of assisting large vessels in bustling port operations. Engineered with a focus on reliability, exceptional durability, and high thrust generation, this thruster system offers versatile installation options, being adaptable to both vertical and horizontal setups to accommodate various tugboat designs.
Key Features & Advantages
✔ High-Power Variants Available – Ranging from 160KW to over 1000KW (covering both standard and heavy-duty tugboat models)
✔ Flexible Mounting Configurations – Enables vertical or horizontal installation for optimal space utilization on tugboats
✔ Unmatched Maneuverability – Essential for efficient towing, precise docking, and comprehensive port assistance tasks
✔ Quiet and Smooth Operation – Minimizes noise and vibration levels, ensuring a harmonious working environment in harbors
✔ Globally Certified Quality – Endorsed by leading classification societies including ABS, BV, CCS, DNV, NK, KR, GL, and RINA
✔ Tailored OEM Solutions – Custom-designed thrusters to meet the unique specifications and requirements of individual tugboats
Technical Specifications
| Power Range | Application Scenarios |
|---|---|
| 160KW – 480KW | Ideal for standard tugboats engaged in routine harbor operations |
| 600KW – 1000KW+ | Perfect for large tugboats undertaking heavy-duty towing missions |
| Feature | Benefit |
|---|---|
| Compact yet Robust Design | Seamlessly integrates into tugboat hulls, saving valuable space |
| Optimized Propeller Design | Delivers a high thrust-to-power ratio, ensuring efficient towing performance |
| Low Maintenance Requirements | Features sealed bearings and corrosion-resistant materials for extended service life |
| Certified Safety Standards | Complies with IMO and various class society regulations, guaranteeing safe operation |
Parameters:
| Model | FP-500 | FP-600 | FP-700 | FP-800 | FP-900 | FP-1000 | FP-1100 | FP-1300 | FP-1480 |
|---|---|---|---|---|---|---|---|---|---|
| Maximum Input Power (KW) | 63/72 | 90/105 | 135/165 | 180/190 | 200/235 | 280/290 | 315/340 | 445/480 | 560/620 |
| Maximum Thrust (kN) | 10/11.2 | 14.5/16.3 | 20/24.8 | 29.5/30.5 | 31/35.4 | 43/45.2 | 49/53.8 | 67/73 | 88/95 |
| Cylinder Length (mm) | 600 | 800 | 800 | 920 | 920 | 1045 | 1045 | 1190 | 1320 |
| Cylinder Internal Diameter (mm) | 515 | 615 | 715 | 818 | 918 | 1020 | 1120 | 1328 | 1510 |
| Ratio | 1.52 | 2.071 | 2.1 | 2.417 | 2.42 | 3.09 | 3.09 | 3.78 | 4.364 |
| Maximum Input Torque (Nm) | 600 | 900 | 900 | 1400 | 1400 | 2100 | 2100 | 3000 | 3800 |
| Maximum Input Speed (rpm) | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 |
| Propeller Speed (rpm) | 954/1151 | 700/845 | 700/845 | 600/724 | 600/724 | 469.1/566 | 469.1/566 | 384/463 | 332.3/401 |
| Propeller Diameter (mm) | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1300 | 1480 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
