TTS SERIES MARINE ROTOR SEWAGE PUMP
General Description
Marine Rotor Sewage Pump
This pump is designed for conveying fluids with temperatures ranging from -50 to 350° C, viscosity not exceeding 500,000 cp, solid particle size not larger than 60mm, and solid content not exceeding 70%. The rated discharge pressure does not exceed 1.2 MPa. The manufacturing standards of this product are divided into two main series: sanitary grade and corrosion-resistant type. The core components and sealing devices are manufactured using different materials and sealing forms based on the specific characteristics of different media, thereby enhancing the pump’s specialized conveying performance. This product is widely used in industries such as petroleum and chemical engineering, fine chemicals, daily chemicals, pharmaceuticals, food, environmental protection, papermaking, coatings, and marine applications.

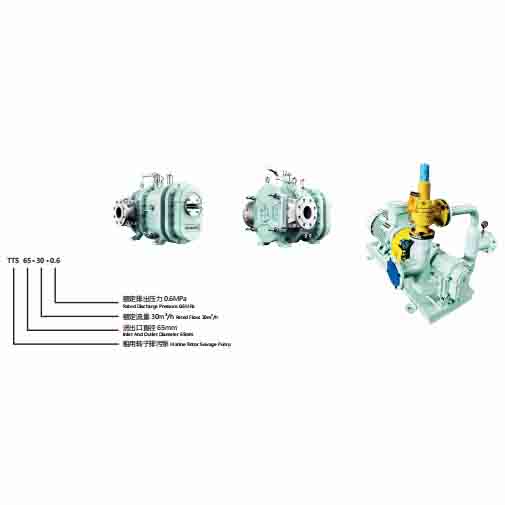

Example: TTS65-30-0.6
Model Code Interpretation:
-
TTS: Marine Rotor Sewage Pump
-
65: Outlet Pipe Diameter (mm)
-
30: Rated Flow: 30m³/h
-
0.6: Rated Discharge Pressure: 0.6MPa
Main Technical Performance Parameter
| Model | Flow (m³/h) | Discharge Pressure (Mpa) | Rated Revolution (r/min) |
|---|---|---|---|
| TTS25 | 1.8-9 | 0.06-1.2 | 200-800 |
| TTS40 | 3-16 | 0.06-1.2 | 200-800 |
| TTS50 | 6-24 | 0.06-1.2 | 200-800 |
| TTS65 | 10-45 | 0.06-1.2 | 150-650 |
| TTS80 | 20-90 | 0.06-1.2 | 150-650 |
| TTS100 | 30-135 | 0.06-1.2 | 150-650 |
| TTS125 | 20-140 | 0.06-1.2 | 100-500 |
| TTS150 | 30-180 | 0.06-1.2 | 100-500 |
| TTS200 | 40-280 | 0.06-1.2 | 100-500 |
Note: The description may be different with the product, please contact us for quotation.
