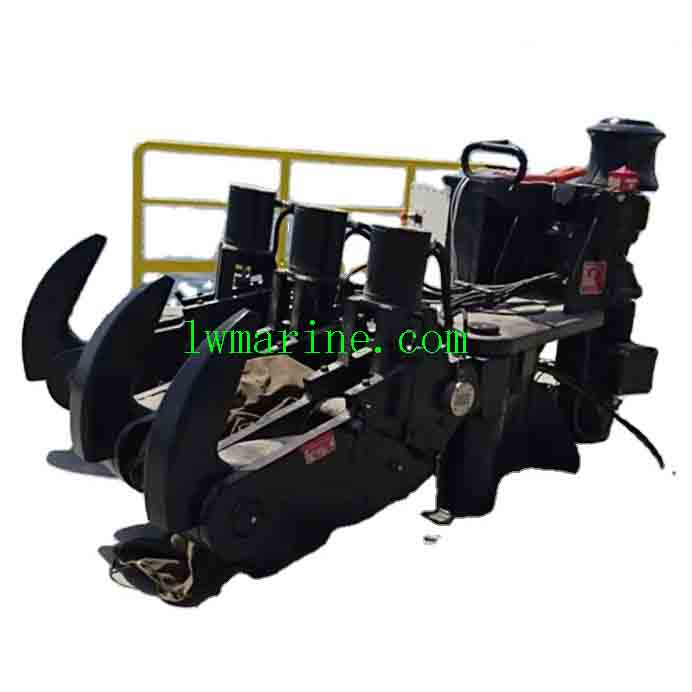

Triple Quick Release Mooring Hook – Heavy Duty Zinc Galvanized Marine Release System
Our Triple Quick Release Mooring Hook delivers superior performance and safety for demanding marine mooring operations. Featuring three hook bodies operated by a single handle, this robust system enables rapid, controlled release of mooring lines in critical situations. The zinc galvanized surface treatment provides exceptional corrosion resistance in harsh saltwater environments.
Certified by major international classification societies including CCS, BV, GL, LR, ABS, and DNV, these heavy-duty mooring hooks are engineered to meet the highest maritime safety standards. Available in six capacity models from 40 to 150 tons to accommodate various vessel sizes and mooring requirements.
PRODUCT SPECIFICATIONS
-
Surface Treatment: Zinc Galvanized for maximum corrosion protection
-
Configuration: Three hook bodies with single handle operation
-
Certification: CCS, BV, GL, LR, ABS, DNV and other major classification societies
-
Available Models: 40, 60, 75, 100, 125, and 150 ton capacities
TECHNICAL DATA – TRIPLE QUICK RELEASE MOORING HOOK
| Product No. | Safe Working Load (kN) | Weight (kg) | A | B | BB | C | D | E | EE | F | G | H | K | L | M | O | R | X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THA-001 | 400 | 707 | 598 | 700 | 800 | 310 | 62 | 260 | 145 | 35 | 370 | 1296 | 96 | 290 | 275 | – | – | 6*M56 |
| THA-002 | 600 | 1268 | 863 | 800 | 900 | 335 | 70 | 310 | 162 | 45 | 407 | 1663 | 130 | 325 | 310 | 65 | 100 | 6*M64 |
| THA-003 | 750 | 1540 | 893 | 850 | 1000 | 375 | 78 | 325 | 175 | 45 | 417 | 1743 | 130 | 350 | 325 | 60 | 100 | 6*M72 |
| THA-004 | 1000 | 2144 | 959 | 900 | 1060 | 400 | 78 | 350 | 190 | 50 | 447 | 1859 | 150 | 380 | 322 | 55 | 100 | 6*M72 |
| THA-005 | 1250 | 2450 | 1030 | 900 | 1060 | 400 | 86 | 350 | 190 | 55 | 479 | 1930 | 150 | 380 | 322 | 55 | 100 | 7*M80 |
| THA-006 | 1500 | 3586 | 1235 | 1020 | 1200 | 475 | 96 | 385 | 212 | 55 | 499 | 2255 | 150 | 425 | 385 | 115 | 125 | 7*M90 |
The description/sizes may be different with goods, please check with us when order.
