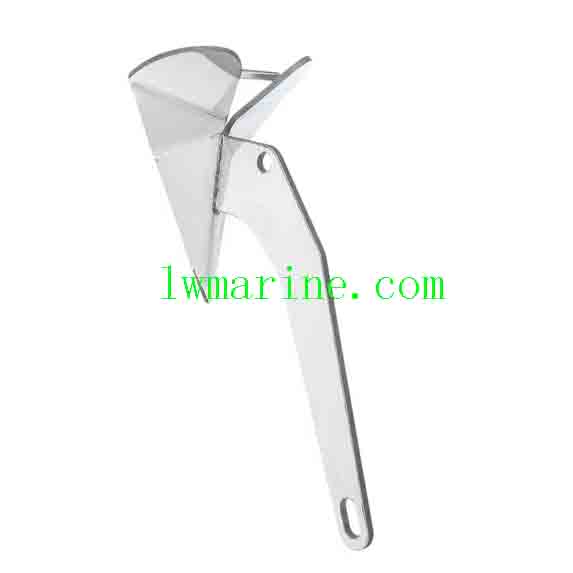

Delta Steel Plate Anchor (Triangular Anchor)
Superior Holding Power for Demanding Conditions
Our Triangular Anchor(Delta anchor), crafted from premium Q345C steel plate, delivers exceptional performance through its innovative triangular fluke design. The open-frame construction ensures:
✓ Instant penetration in all seabed types
✓ 40% higher holding power-to-weight ratio
✓ Self-stabilizing to prevent rotation
✓ Maintains grip under extreme loads
Technical Highlights
▸ Weight Range: 300kg – 100,000kg
▸ Material: Marine-grade Q345C structural steel
▸ Protection: Heavy-duty bitumen coating (300μm)
▸ Certified: CCS, ABS, BV, LR, NK, RINA
Parameters:
| C | D | E | F | A | B | Nominal Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) |
| 1080 | 457 | 1380 | 45 | 1200 | 960 | 300 |
| 1350 | 571 | 1725 | 50 | 1500 | 1200 | 500 |
| 1530 | 650 | 1950 | 60 | 1700 | 1360 | 750 |
| 1686 | 714 | 2155 | 62 | 1875 | 1500 | 1000 |
| 1686 | 722 | 2200 | 62 | 1915 | 1530 | 1080 |
| 2025 | 820 | 2556 | 68 | 2280 | 1800 | 1500 |
| 2124 | 900 | 2715 | 82 | 2363 | 1890 | 2000 |
| 2280 | 965 | 2920 | 82 | 2540 | 2030 | 2500 |
| 2430 | 1010 | 3094 | 90 | 2650 | 2120 | 2835 |
| 2430 | 1028 | 3105 | 90 | 2700 | 2160 | 3000 |
| 2650 | 1130 | 3395 | 100 | 2975 | 2380 | 4000 |
| 2922 | 1238 | 3735 | 110 | 3250 | 2600 | 5000 |
| 3216 | 1361 | 4116 | 117 | 3575 | 2860 | 7000 |
| 3290 | 1390 | 4210 | 117 | 3650 | 2925 | 7500 |
| 3360 | 1420 | 4300 | 130 | 3730 | 2990 | 8000 |
| 3555 | 1504 | 4543 | 135 | 3950 | 3160 | 9000 |
| 3690 | 1561 | 4715 | 140 | 4100 | 3280 | 10000 |
| 3942 | 1638 | 5017 | 145 | 4300 | 3440 | 12000 |
| 4195 | 1765 | 5535 | 150 | 4670 | 3720 | 13500 |
| 4355 | 1830 | 5513 | 150 | 4845 | 3875 | 15000 |
| 4610 | 1940 | 6080 | 160 | 5140 | 4080 | 18000 |
| 4790 | 2010 | 6310 | 170 | 5330 | 4260 | 20000 |
| 4905 | 2060 | 6470 | 180 | 5490 | 4360 | 22500 |
| 5160 | 2165 | 6532 | 195 | 5740 | 4590 | 25000 |
| 5486 | 2305 | 7225 | 195 | 6100 | 4880 | 30000 |
| 5775 | 2426 | 7605 | 205 | 6424 | 5138 | 35000 |
| 6036 | 2536 | 7948 | 210 | 6715 | 5370 | 40000 |
| 6184 | 2640 | 8270 | 220 | 6986 | 5588 | 45000 |
| 6715 | 2820 | 8840 | 230 | 7470 | 5975 | 50000 |
| 6715 | 2820 | 8840 | 230 | 7470 | 5975 | 55000 |
| 6910 | 2940 | 9100 | 240 | 7690 | 6150 | 60000 |
| 7100 | 2980 | 9350 | 245 | 7900 | 6315 | 65000 |
| 7275 | 3060 | 9580 | 250 | 8095 | 6475 | 70000 |
| 7405 | 3100 | 9750 | 255 | 8235 | 6590 | 75000 |
| 7610 | 3195 | 10020 | 260 | 8460 | 6770 | 80000 |
| 7750 | 3255 | 10210 | 265 | 8625 | 6900 | 85000 |
| 7910 | 3325 | 13420 | 270 | 8800 | 7040 | 90000 |
| 8055 | 3385 | 10610 | 280 | 8960 | 7170 | 95000 |
| 8190 | 3440 | 10780 | 280 | 9110 | 7285 | 100000 |
The description/sizes may be different with goods, please check with us when order.
