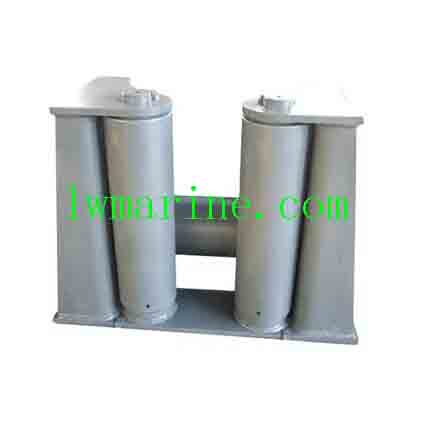

CB/T 3062-2011 Three Rollers Fairlead Type A – Premium Rope Guidance System
Optimized for Smooth & Safe Mooring Operations
Our CB/T 3062-2011 Three Rollers Fairlead (Type A) ensures superior rope handling with three precision-engineered rollers, reducing friction and wear on both steel wire ropes (14mm–44mm) and nylon ropes (36mm–100mm).
✔ Strict Compliance with CB/T 3062-2011 – Guarantees structural integrity and performance
✔ Defect-Free Roller Surface – Smooth operation with no performance-affecting imperfections
✔ Heavy-Duty Steel Plate Construction – Built for durability in harsh marine environments
✔ Versatile Rope Compatibility – Works with both wire and synthetic mooring lines
Available in Three Configurations (Type A, B, C) – Up to 5 Rollers on Request
Whether you need standard Type A or a custom setup, we provide certified fairleads tailored to your vessel’s needs.
Certified Quality for Reliable Performance
All fairleads undergo rigorous quality checks and meet CB/T 3062-2011 standards, ensuring:
-
High load-bearing capacity
-
Corrosion-resistant materials
-
Long service life
Parameters:
| Nominal Dia. | Nylon Rope Dia. | SWL KN | Steel Wire Dia. | Weight (kg) | B | B1 | B2 | D | H | H1 | L | L1 | L2 | L3 | t |
| 100 | 36 | 54 | 14 | 112 | 238 | 194 | 108 | 102 | 508 | 330 | 644 | 416 | 300 | 544 | 10 |
| 120 | 40 | 70 | 16 | 169 | 280 | 232 | 128 | 121 | 552 | 360 | 728 | 456 | 320 | 608 | 12 |
| 140 | 45 | 89 | 18 | 227 | 304 | 250 | 138 | 140 | 606 | 405 | 776 | 480 | 330 | 646 | 14 |
| 150 | 70 | 110 | 20 | 328 | 346 | 288 | 158 | 152 | 670 | 435 | 880 | 540 | 370 | 730 | 16 |
| 160 | 80 | 133 | 22 | 388 | 370 | 308 | 168 | 168 | 710 | 470 | 940 | 580 | 400 | 780 | 18 |
| 180 | 85 | 186 | 26 | 575 | 417 | 345 | 190 | 194 | 770 | 510 | 1030 | 620 | 420 | 850 | 20 |
| 200 | 95 | 216 | 28 | 722 | 459 | 385 | 210 | 219 | 820 | 550 | 1136 | 686 | 460 | 936 | 22 |
| 230 | 100 | 282 | 32 | 966 | 521 | 445 | 240 | 245 | 910 | 605 | 1256 | 746 | 490 | 1026 | 25 |
| 260 | 100 | 357 | 36 | 1422 | 590 | 500 | 270 | 273 | 1000 | 670 | 1430 | 850 | 560 | 1170 | 28 |
| 320 | 100 | 533 | 44 | 2122 | 714 | 620 | 330 | 325 | 1130 | 770 | 1690 | 990 | 640 | 1370 | 30 |
The description/sizes may be different with goods, please check with us when order.
