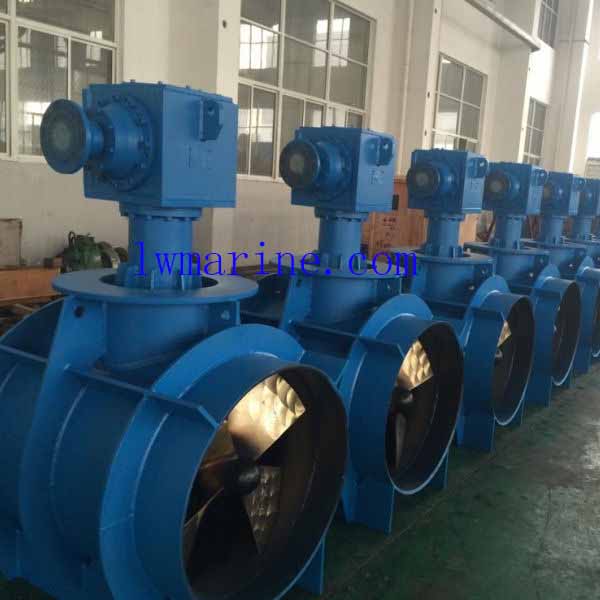

Tanker Bow Thruster
Our Tanker Bow Thruster delivers powerful transverse thrust to ensure safe and precise maneuvering in all weather and water conditions. Designed for heavy-duty performance, it provides sufficient thrust for large tankers, enhancing docking, slow-speed navigation, and emergency steering.
Key Features & Benefits
✔ Controllable Pitch Propeller (CPP) – Adjustable thrust for optimal efficiency
✔ Multiple Drive Options – Electric motor, diesel engine, or hydraulic motor
✔ High Power Range – 280KW to 2000KW for large vessels
✔ Superior Performance – Reliable operation in harsh marine environments
✔ Global Certification – Approved by CCS, BV, ABS, LR, NK, DNV, GL, RINA
Technical Specifications
| Parameter | Specification |
|---|---|
| Propeller Type | CPP (Controllable Pitch) |
| Propeller Diameter | 1100mm – 2800mm |
| Drive System | Electric / Diesel / Hydraulic |
| Power Range | 280KW – 2000KW |
| Certifications | CCS, BV, ABS, LR, NK, DNV, GL, RINA |
| Controllable pitch propeller tunnel thruster parameters | |||||||
| Model | CP-1000 | CP-1100 | CP-1300 | CP-1650 | CP-2000 | CP-2400 | CP-2800 |
| Max thrust | 43 | 46/47 | 66/67 | 97/105 | 155/144 | 239/242 | 298/297 |
| Cylinder length | 1045 | 1045 | 1190 | 1446 | 1680 | 1990 | 2280 |
| Cylinder internal | 1020 | 1120 | 1328 | 1680 | 2030 | 2430 | 2836 |
| Max input power | 280 | 315/335 | 445/480 | 680/730 | 1050/900 | 1580/1720 | 2000/1910 |
| Ratio | 3.09 | 3.09 | 3.78 | 4.72 | 4.82 | 4.645 | 4.395 |
| Max input speed | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1190 | 980/1190 | 980/880 |
| Propeller speed | 469.1/560 | 469/566 | 384/463 | 307/370 | 301/247 | 211/256 | 223/200 |
| Propeller diameter | 1000 | 1100 | 1300 | 1650 | 2000 | 2400 | 2800 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
