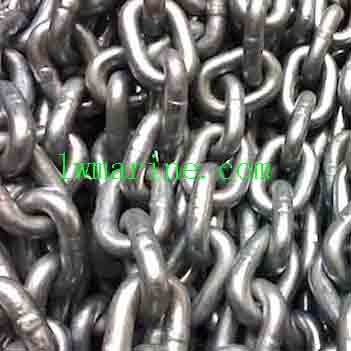

U2 Grade 16mm Studless Anchor Chain for Marine & Offshore Applications
Marine & Offshore Solutions Provider:
As a comprehensive provider of marine Studless Anchor Chain, we specialize in equipping all vessel types with premium-grade products, including:
- Tankers: VLCC, Oil Tankers
- Gas Carriers: LNGC, LPGC
- Commercial Vessels: Container Ships, Bulk Carriers, Cargo Liners
- Offshore Units: FPSO, FSO, Oil Platforms
Key Features:
- Chain Diameter: 16mm (5/8″), offering optimal strength and durability for various marine and offshore applications.
- Material Specification: Constructed from CM490 High-Tensile Steel, ensuring exceptional resistance to tension and wear.
- Surface Treatment: Hot-Dip Galvanized in compliance with ISO 1461 Standard, providing superior corrosion resistance and extending the chain’s service life.
- Certification: Meets U2 Classification Standards, guaranteeing high-quality performance and safety in demanding marine environments.
- Origin: Proudly manufactured in China, adhering to stringent quality control measures.
Technical Specifications:
Our U2 Grade 16mm Studless Anchor Chain is designed to withstand rigorous marine conditions. Below are the technical specifications for various chain diameters, including proof load, breaking load, and nominal weight per 27.5 meters:
| Chain Diameter (mm) | Proof Load (kN) – Grade 2 | Proof Load (kN) – Grade 3 | Breaking Load (kN) – Grade 2 | Breaking Load (kN) – Grade 3 | Nominal Weight (kg/27.5m) |
|---|---|---|---|---|---|
| 12.5 | 41.20 | 56.40 | 82.60 | 112.80 | 85.41 |
| 14 | 51.00 | 70.76 | 101.90 | 141.51 | 106.55 |
| 16 | 66.20 | 92.42 | 132.30 | 184.83 | 139.43 |
| 17.5 | 78.89 | 110.55 | 157.78 | 221.10 | 178.35 |
| 19 | 93.60 | 130.32 | 187.20 | 260.64 | 217.68 |
| 20.5 | 108.64 | 151.70 | 217.27 | 303.42 | 229.14 |
| 22 | 125.40 | 174.70 | 250.90 | 349.40 | 264.49 |
| 24 | 149.90 | 207.90 | 298.90 | 415.80 | 341.82 |
| 26 | 175.40 | 214.00 | 350.80 | 488.00 | 369.94 |
| 28 | 203.80 | 283.00 | 406.70 | 566.00 | 427.04 |
| 30 | 234.20 | 324.90 | 467.5 | 649.80 | 490.98 |
| … | … | … | … | … | … |
| 70 | 1264.20 | 1768.90 | 2528.40 | 3537.80 | 2697.65 |
FAQs about U2 Grade 16mm Studless Anchor Chain:
Q1: What makes the U2 Grade 16mm Studless Anchor Chain suitable for marine applications?
A1: The U2 Grade 16mm Studless Anchor Chain is constructed from CM490 High-Tensile Steel and features a hot-dip galvanized surface treatment, ensuring exceptional strength, durability, and corrosion resistance, making it ideal for marine environments.
Q2: How does the hot-dip galvanization process enhance the chain’s performance?
A2: Hot-dip galvanization involves coating the chain with a layer of zinc, which provides superior protection against corrosion and extends the chain’s service life, even in harsh marine conditions.
Q3: What certifications does the U2 Grade 16mm Studless Anchor Chain meet?
A3: The chain meets U2 Classification Standards, ensuring high-quality performance and safety in demanding marine applications.
Q4: Can the U2 Grade 16mm Studless Anchor Chain be used on different types of vessels?
A4: Yes, our chain is versatile and can be used on various vessel types, including tankers, gas carriers, commercial vessels, and offshore units, providing reliable anchoring solutions.
Q5: How do I determine the right chain diameter for my vessel?
A5: The appropriate chain diameter depends on your vessel’s size, weight, and anchoring requirements. Our technical specifications table can help you select the right chain diameter based on proof load, breaking load, and nominal weight.
The description/sizes may be different with goods, please check with us when order.
