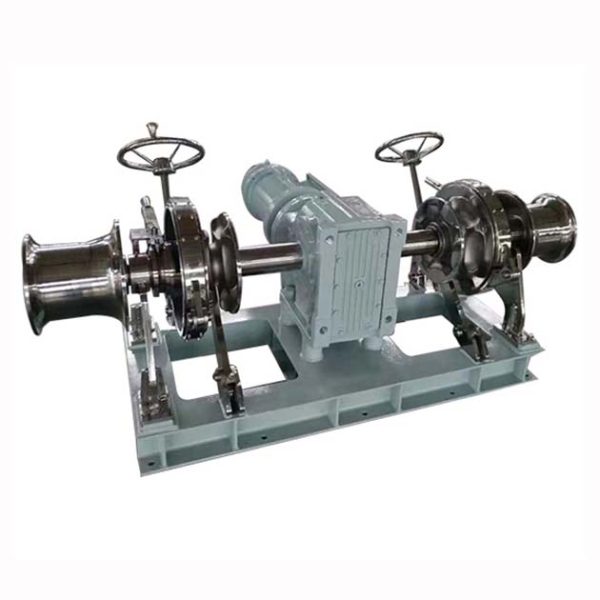

19mm Stainless Steel Anchor Windlass
Application
The 19mm Stainless Steel Anchor Windlass is a premium-grade marine anchoring system designed for vessels operating in corrosive environments.
Primary Applications:
-
High-end yachts
-
Coastal patrol vessels
-
Offshore service boats
-
Fishing vessels in saltwater conditions
Key Features:
✔ Full 316L stainless steel construction – Ultimate corrosion resistance
✔ Ø19mm chain capacity (ISO G2/G3)
✔ Closed gearbox (IP56) – Complete protection against seawater
✔ Manual brake/clutch – Immediate operational control
Technical Specifications
| Parameter | Specification |
|---|---|
| Chain Size | Ø19mm |
| Motor Power | 5.5-11kW (400V/50Hz) |
| Control Voltage | 24V DC/110V AC |
| Gear Type | Helical (oil-bath) |
| Pull Capacity | Up to 40kN |
Construction Highlights
Premium Materials:
-
316L stainless steel frame and components (PREN >25)
-
Hardened alloy steel gears (HRC 58-62) with stainless coating
-
Marine-grade seals and gaskets
Advantages & Features
-
Superior Corrosion Resistance
-
Complete 316L stainless construction
-
Ideal for saltwater and tropical environments
-
-
Dual Warping Head Design
-
Enhanced mooring capability
-
Smooth rope handling
-
-
Operational Excellence
-
Local control station (IP56 rated)
-
Optional wireless remote
-
-
Maintenance Advantages
-
Self-lubricating bearings
-
Easy-access service points
-
-
Certifications
-
IRS, RINA, BV
-
SOLAS compliant
-
| Main Technical Data Of Windlass | ||||||
| Chain Dia. | Supporting Load | Working Speed | Warping Load | Working Load | Overload pull | Motor Power |
| mm | KN | m/min | KN | KN | KN | kW |
| 19 | 95 | ≥9 | 10 | 15.3 | 23 | 4.3/1.7 |
The description/sizes may be different with goods, please check with us when order.
