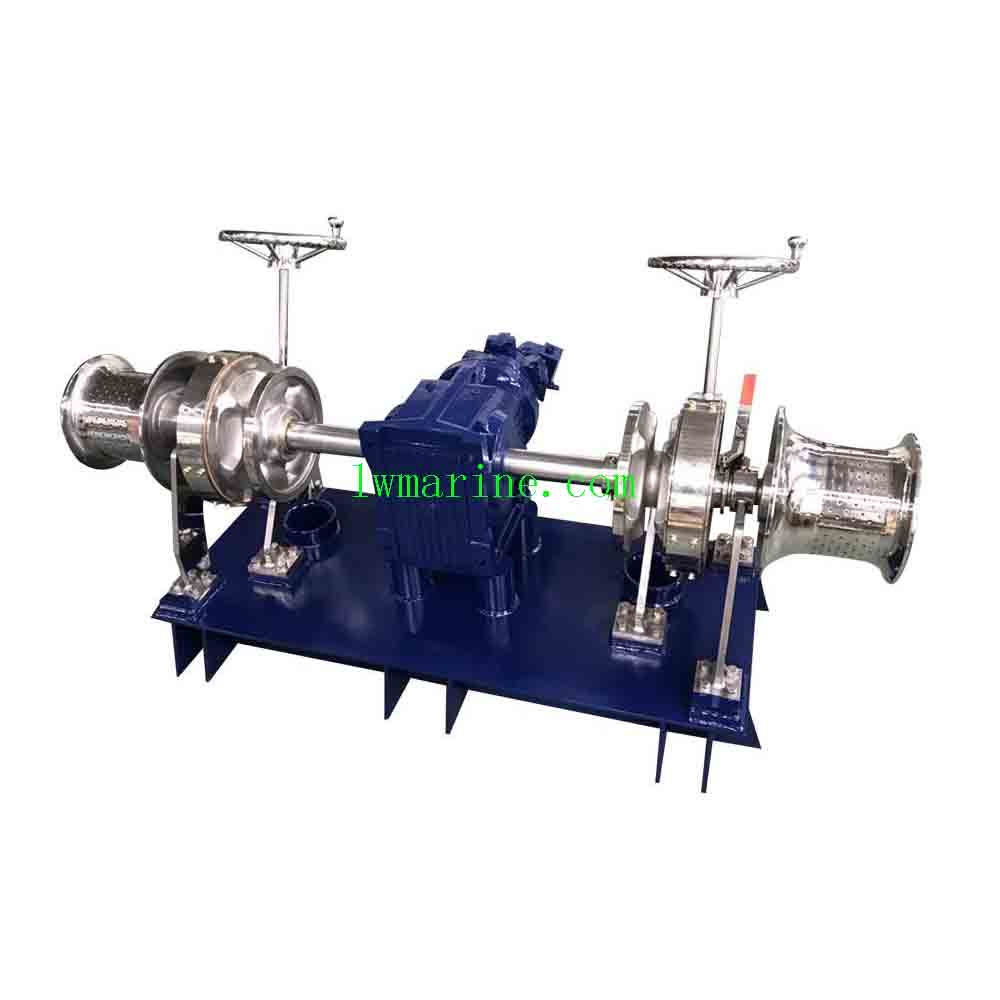

Stainless Steel Anchor Windlass
Product Overview
The Stainless Steel Anchor Windlass represents the pinnacle of corrosion-resistant marine deck equipment. Engineered entirely from 316L stainless steel, this windlass delivers exceptional durability in saltwater environments, making it ideal for vessels operating in harsh marine conditions.
Technical Specifications
Drive System Options
-
Hydraulic Stainless Steel Anchor Windlasses
-
Electric Stainless Steel Anchor Windlasses
-
Diesel Engine Stainless Steel Anchor Windlasses
Material Composition
-
100% 316L stainless steel construction (motor housing, gypsy, chain wheel, and structural components)
Performance Range
-
Chain diameter: 12.5mm – 160mm
-
Chain grade: AM2 to AM3
-
Optional drum configuration
Quality Assurance
-
Full compliance with marine classification standards
-
Third-party inspection during design and fabrication
-
Certified by BV, LR, RINA, and other classification societies
| Main Technical Data Of Windlass | |||||
| Chain Dia. | Working Speed | Mooring Load | Working Load | Supporting Load | Motor Power |
| mm | m/min | KN | KN | KN | kW |
| 28/30 | ≥9 | 30 | 33.3/38.3 | 202/231 | 15 |
| 32/34/36 | ≥9 | 30 | 43.5/49.1/55.1 | 261/294/329 | 22 |
| 38/40/42 | ≥9 | 40 | 61.4/68.0/75.0 | 365/402/442 | 30 |
| 44/46/48 | ≥9 | 50 | 82.3/89.9/97.9 | 483/526/570 | 37 |
| 50/52/54 | ≥9 | 50 | 106.3/114.9/132.9 | 617/664/713 | 45 |
| 56/58/60 | ≥9 | 60 | 133.2/143.0/153.0 | 764/816/870 | 55 |
| 66/68 | ≥9 | 100 | 185.1/195.5 | 1040/1098 | 75 |
| 70/73 | ≥9 | 100 | 208.3/226.5 | 1160/1254 | 75 |
| 76/78 | ≥9 | 125 | 245.5/258.6 | 1350/1416 | 90 |
| 81/84 | ≥9 | 140 | 311.7/335.2 | 2171/2320 | 110 |
| 87/90 | ≥9 | 150 | 359.5/384.8 | 2473/2629 | 120 |
The description/sizes may be different with goods, please check with us when order.
