STAINLESS STEEL/ALUMINIUM SINGLE-LEAF SLIDING DOOR FOR CABIN
It is applicable to the cabins on the superstructure of ships, with surface anodized or PVC – covered.
SUITABLE FOR THE CABINS INSIDE SHIP SUPERSTRUCTURE. THE SURFACE OF DOOR IS OXIDIZED OR PVC COVERED.

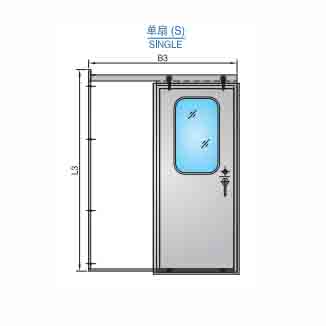

[Technical diagram showing front – view of the door with dimensions labeled B3, D, T1, T2, L×B2. There are also details of different types: A – base mode, B – with fixed light, C – with ventilator escape hole, D – with fixed light & ventilator escape. The diagram also indicates the materials: N for aluminum alloy, L for stainless steel.]
| Type | Size of Doorway L×B | Frame Size | Size of B.H. Opening | Outer Size (including frame) | Opening Direction | Weight (KG) – Aluminum Alloy / Stainless Steel |
|---|---|---|---|---|---|---|
| A / B / C / D (for each material type) | ||||||
| A: Base Mode | 1600X600 | 1710X710 | 1715X715 | 1760X1200 (with T1 + 20) | Left – opening | 29 / 31 / 31 / 33 / 77 / 77 / 79 (detailed breakdown per material and sub – type in original table structure) |
| B: With Fixed Light | 1650X650 | 1760X760 | 1765X765 | 1815X1250 | 31 / 33 / 33 / 35 / 81 / 83 / 85 | |
| C: With Ventilator Escape Hole | 1750X700 | 1810X760 | 1815X765 | 1915X1400 | 33 / 35 / 35 / 37 / 86 / 88 / 90 | |
| D: With Fixed Light & Ventilator Escape | 1750X800 | 1810X860 | 1815X865 | 1915X1600 | 36 / 38 / 38 / 40 / 94 / 96 / 98 | |
| 1600X1200 | 1710X1260 | 1715X1265 | 1760X1800 | 57 / 61 / 61 / 65 / 148 / 152 / 156 | ||
| 1650X1300 | 1760X1360 | 1765X1365 | 1815X1900 | 61 / 65 / 65 / 69 / 159 / 163 / 167 | ||
| 1750X1600 | 1810X1660 | 1815X1665 | 1915X2200 | 75 / 79 / 79 / 83 / 185 / 189 / 193 |
Marking Example:
For a left – opening, single – leaf aluminum alloy cabin sliding door with a doorway size of 1600X600, frame depth D = 200: Aluminum Single – leaf Cabin Sliding Door SL – B1600X600 – 200L JY015C – 00.
