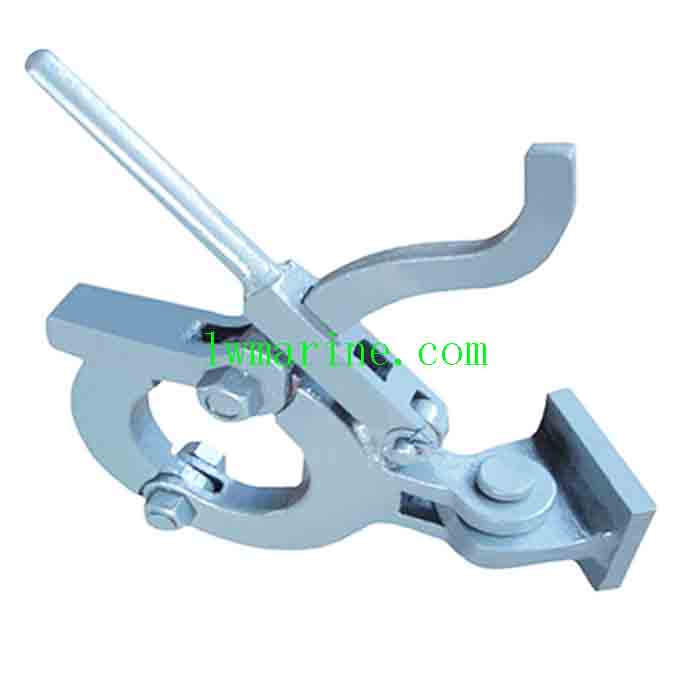

CB788 2-Ton Springless Towing Hook – Quick Release Manual Towing Hook for Emergency Mooring & Vessel Safety
Engineered for reliability in critical situations, the China CB788 2-Ton Springless Towing Hook enables fast and manual release of mooring ropes during emergencies. Ideal for replacing traditional mooring bollards, this robust and easy-to-operate towing hook is designed for safety and efficiency in marine and towing applications.
Product Features:
-
Manual quick-release towing hook – No springs, simple and reliable operation under pressure
-
2-ton working load limit (WLL) – Rated for demanding marine and towing environments
-
Emergency mooring release hook – Ensures safe disconnection in urgent scenarios
-
Mooring bollard replacement solution – Compact and versatile for various deck layouts
-
Heavy-duty marine-grade construction – Built to withstand harsh conditions and repeated use
Technical Specifications – Springless Towing Hook Model CB788-74
| WLL (T) | H (mm) | H1 (mm) | L1 (mm) | L (mm) | l1 (mm) | l2 (mm) | B (mm) | D (mm) | R (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 255 | 105 | 80 | 305 | 165 | 45 | 30 | 50 | 65 | 9.18 |
| 2 | 268 | 110 | 80 | 328 | 175 | 50 | 35 | 62 | 70 | 15.04 |
| 3 | 282 | 130 | 80 | 362 | 200 | 51 | 40 | 72 | 75 | 23.48 |
| 4 | 315 | 146 | 95 | 402 | 225 | 53 | 44 | 84 | 78 | 32.07 |
Common Applications:
-
Emergency mooring release systems
-
Small to medium vessel towing and berthing
-
Replacement for fixed bollards on tugs, workboats, and port craft
-
Marine, inland waterway, and harbor operations
The description/sizes may be different with goods, please check with us when order.
