Single Screw Pump for Ship | Versatile & Efficient Slurry Handling Solutions
Product Overview

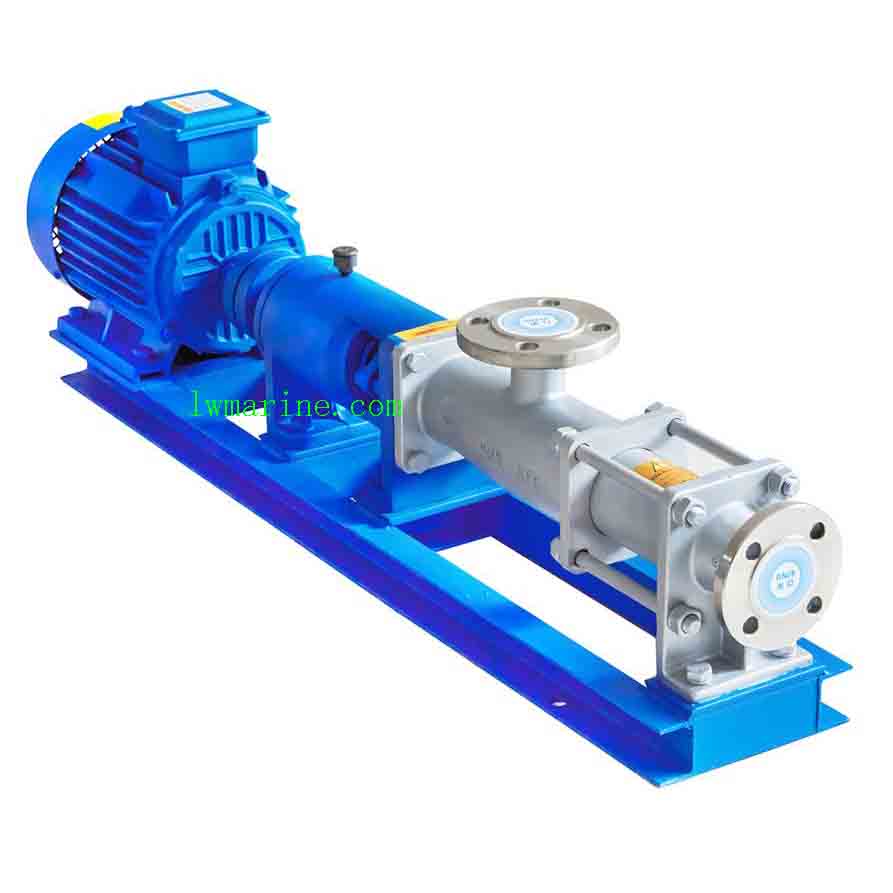

The GN Series Single Screw Pump for Ship is a robust, positive displacement slurry pump designed for demanding marine and industrial applications. Engineered with a direct reducer drive system and stainless steel fluid contact parts, this portable screw pump delivers reliable performance in handling viscous, abrasive, and solid-laden fluids. Originally developed for grape pulp transfer with stalk crusher compatibility, the GN pump series excels in diverse fields from food processing to industrial waste management. Its compact design, mobility features, and corrosion-resistant construction make it ideal for marine environments and onshore processing facilities.
Technical Specifications
| Model | Capacity (t/h) | Pressure (MPa) | Screw Diameter (mm) | Outlet Diameter (mm) | Motor Power (kW) |
|---|---|---|---|---|---|
| GN50-1 | 5–7 | 0.6 | 50 | φ90 | 4 |
| GN60-1 | 8–15 | 0.6 | 60 | φ100 | 5.5 |
| GN80-1 | 20–25 | 0.6 | 80 | φ100 | 7.5 |
| GN80-1 | 30–35 | 0.6 | 80 | φ125 | 15 |
| GN105-1 | 40–50 | 0.6 | 105 | φ125 | 15 |
Key Features & Benefits
-
Positive Displacement Design: Handles viscous fluids and high-solid slurries with consistent flow rates
-
Direct Reducer Drive: Compact configuration ensures efficient power transmission and space savings
-
Stainless Steel Construction: Corrosion-resistant wetted parts ideal for food, marine, and chemical applications
-
Mobility Options: Integrated moving wheels for easy repositioning and operational flexibility
-
Multi-Industry Compatibility: Suitable for food, chemical, pharmaceutical, and industrial sectors
-
Energy-Efficient Operation: Optimized screw design reduces power consumption
-
Low Maintenance Design: Simple construction allows for easy servicing and part replacement
Industrial Applications
-
Food Processing: Meat slurry, fruit pulp, jam, vegetable purees, dairy products
-
Beverage Industry: Yeast suspensions, fermentation residues, brewing ingredients
-
Chemical Processing: Emulsions, pigments, paints, coatings, and synthetic fluids
-
Waste Management: Industrial wastewater, oil sludge, mining tailings, environmental remediation
-
Marine Applications: Bilge sludge, onboard processing, vessel supply transfer
-
Pharmaceuticals: Creams, ointments, cosmetic formulations, shampoo bases
-
Construction Materials: Mortar, asphalt slurries, plaster, and adhesive compounds
Specialized Configurations
-
Forced Feeding Systems: Hopper-equipped models with screw conveyors for non-flowing media
-
Agitation Options: Integrated stirring rods to prevent sedimentation and ensure homogeneity
-
Clog Prevention: Large funnel attachments with crushing capabilities for high-solid concentrations
-
Drive Flexibility: Compatible with various drivers including three-phase gear reduction motors
The description/sizes may be different with goods, please check with us when order.
