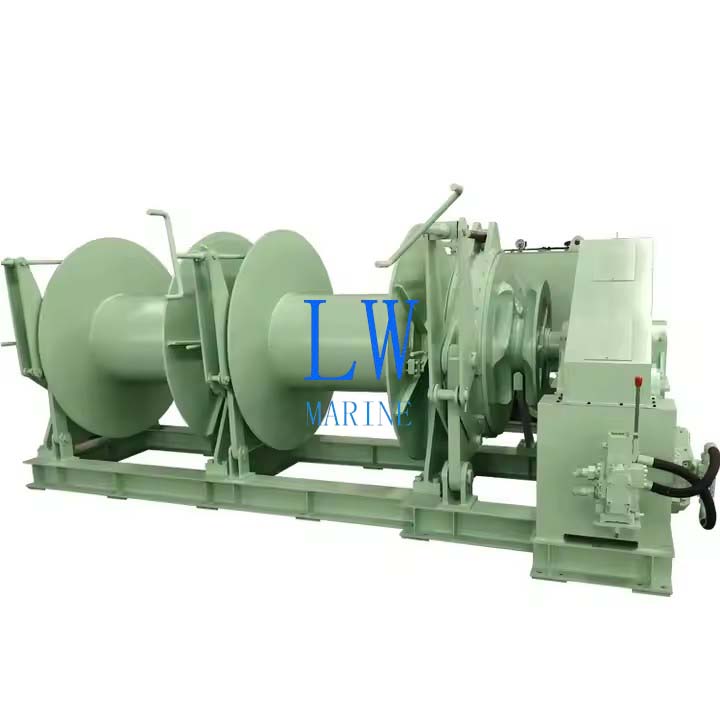

50mm Heavy-Duty Double Drum Single Gypsy Combined Windlass
PRODUCT HIGHLIGHTS
The 50mm Double Drum Single Gypsy Combined Windlass represents a premium marine deck solution that combines anchoring and mooring capabilities in a single robust unit. Designed for commercial vessels requiring high-capacity performance, this hydraulic-powered system delivers exceptional reliability for professional maritime operations.
TECHNICAL SPECIFICATIONS
Core Configuration
-
Hydraulic motor drive system
-
50mm chain capacity
-
Single gypsy wheel for anchor handling
-
Dual independent drums for mooring/winching operations
-
Integrated warping head
Gearbox Options
-
Standard: Closed gearbox (enhanced safety)
-
Optional: Open gearbox configuration
Construction Materials
-
Main structure: Reinforced cast steel
-
Critical components: Marine-grade 316L stainless steel
| Main Technical Data Of Windlass | |||||||||
| Chain Dia. | Drum support load | Overload | Working Load | Supporting Load | Drum capacity | Drum load | Working Speed | Warping Load | Motor Power |
| mm | KN | KN | KN | KN | m | KN | m/min | KN | kW |
| 50 | 240 | 178.2 | 118.8 | 882 | 200 | 80 | ≥9 | 50 | 37 |
The description/sizes may be different with goods, please check with us when order.
