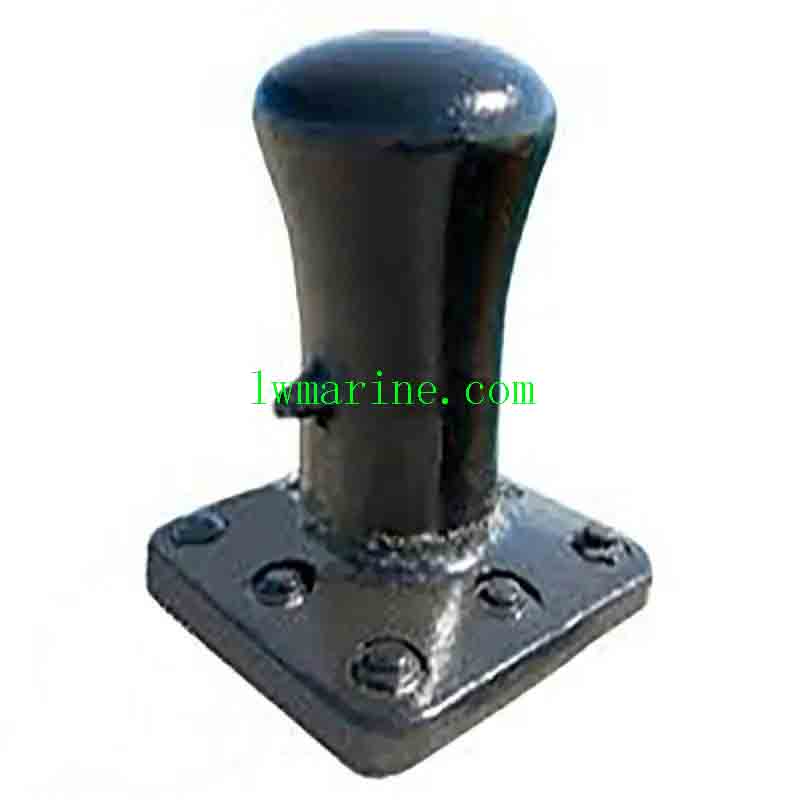

Single Bitt Bollard
Features
- General – purpose applications up to 200 tons.
- Suitable for steep rope angles.
- Two lines may share a single bollard (subject to bollard capacity).
- Concrete – filled (optional).
Visual Representations
- 3D Views: Two three – dimensional images of the single bitt bollard are presented. One shows the overall shape, and the other highlights the top part with an indication of the recommended line angle (ranging from – 15° to + 75°). The seaward side is also indicated.

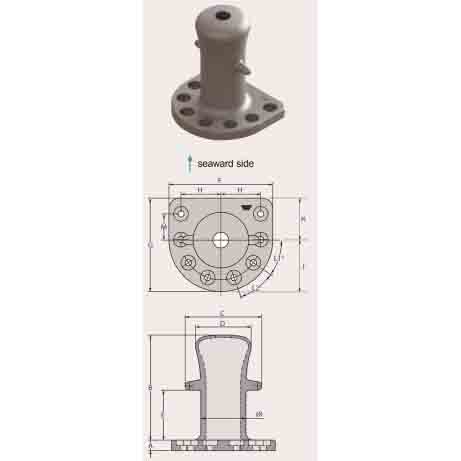

- Technical Drawing: A technical drawing includes a front view, a top view, and a sectional view (with bolt length marked). Various dimensions are labeled on the drawing.
Dimensional and Bollard Capacity Table
| Dimension (mm) | Bollard Capacity (tons) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 30 | 50 | 75 | 100 | 150 | 200 | |||
| A | 45 | 60 | 70 | 80 | 80 | 100 | 110 | ||
| B | 370 | 490 | 630 | 740 | 790 | 900 | 1000 | ||
| C | 260 | 340 | 450 | 500 | 550 | 650 | 850 | ||
| D | 145 | 160 | 260 | 285 | 325 | 380 | 465 | ||
| E | 360 | 420 | 530 | 650 | 760 | 900 | 990 | ||
| F | 315 | 380 | 480 | 580 | 685 | 810 | 890 | ||
| G | 130 | 160 | 205 | 250 | 290 | 345 | 380 | ||
| ØI | 160 | 200 | 260 | 290 | 320 | 370 | 430 | ||
| J | 180 | 210 | 265 | 325 | 380 | 450 | 495 | ||
| K | 135 | 170 | 215 | 255 | 305 | 360 | 395 | ||
| M | 75 | 120 | 155 | 180 | 215 | 255 | 280 | ||
| L1′ | 45′ | 24′ | 11′ | 11′ | 5′ | 5′ | 35′ | ||
| L2′ | – | 66′ | 51′ | 51′ | 43′ | 43′ | 36′ | ||
| Bolt | M24 | M30 | M36 | M42 | M48 | M56 | M64 | ||
| Bolt Length | 400 | 500 | 600 | 750 | 900 | 1000 | 1375 | ||
| P | 60 | 75 | 85 | 95 | 95 | 115 | 125 | ||
| Quantity | 4 | 5 | 6 | 6 | 7 | 7 | 8 |
Note: P represents the bollard base recess mounting depth including grout, with units in millimeters (mm).
Attention please: The description might be incorrect, please contact us for confirmation.
