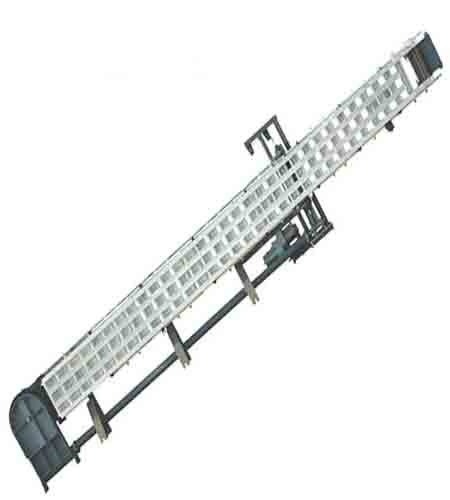

Marine Modular Accommodation Ship’s Ladder for Safe and Efficient Vessel Access
Our marine modular accommodation ship’s ladder is a top-tier solution designed to meet the diverse needs of maritime operations. This pre-assembled ship ladder can be effortlessly lifted on board or directly welded onto the vessel, providing a seamless installation process. Crafted from high-strength aluminum alloy for the ladder itself, it ensures durability and lightweight performance, while the upper platform, lower platform, post, turning device, close device, and winch are constructed from robust steel for added safety and stability.
This marine modular accommodation ladder strictly adheres to the ISO5488-1979 standard and has received approval from the CB/T14360-1993 standard, guaranteeing its compliance with international maritime safety regulations. Moreover, we offer a range of certification options, including CCS, DNV, BV, LR, KR, NK, and RINA, among others, tailored to meet the specific requirements of our clients.
Key Features:
- Compliance with International Standards: Meets CB/T14360-1993 and ISO5488-1979 standards.
- Comprehensive Certification: Available with CCS, DNV, BV, LR, KR, NK, RINA, and more certifications upon request.
- Durable Material Construction: Aluminum alloy ladder for lightweight strength; steel components for enhanced safety.
- Modular Design: Easy to assemble, lift, or weld onto vessels for versatile installation.
- Complete Accessory Set: Includes upper and lower platforms, post, turning device, close device, and winch.
- OEM Service Available: Customize the ladder to fit your specific vessel requirements.
Technical Specifications:
(Unit: mm)
| Number of Steps | L | L1 | L2 (Design-Decided) | L3 (Max Height Range) | H (Max Height) | Step Space (mm) | Max Use Angle |
|---|---|---|---|---|---|---|---|
| 12 | 5600 | 3600 | – | 850-2000 | 3620 | 300-(350) | 55°(60°) |
| 14 | 6200 | 4200 | 4100 | – | – | – | – |
| 16 | 6800 | 4800 | 4590 | – | – | – | – |
| 18 | 7400 | 5400 | 5080 | – | – | – | – |
| 20 | 8000 | 6000 | 5800 | – | – | – | – |
| 22 | 8600 | 6600 | 6300 | – | – | – | – |
| 24 | 9200 | 7200 | 6800 | – | – | – | – |
| 26 | 9800 | 7800 | 7300 | – | – | – | – |
| 28 | 10400 | 8400 | 7800 | – | – | – | – |
| 30 | 11000 | 9000 | 8300 | – | – | – | – |
| 32 | 11600 | 9600 | 8800 | – | – | – | – |
| 34 | 12200 | 10200 | 9300 | – | – | – | – |
| 36 | 12800 | 10800 | 9800 | – | – | – | – |
| 38 | 13400 | 11400 | 10300 | – | – | – | – |
| 40 | 14000 | 12000 | 10800 | – | – | – | – |
| 42 | 14600 | 12600 | 11300 | – | – | – | – |
| 44 | 15200 | 13200 | 11800 | – | – | – | – |
| 46 | 15800 | 13800 | 12300 | – | – | – | – |
| 48 | 16400 | 14400 | 12800 | – | – | – | – |
| 50 | 17000 | 15000 | 13300 | – | – | – | – |
| 52 | 17600 | 15600 | 13800 | – | – | – | – |
| 54 | 18200 | 16200 | 14300 | – | – | – | – |
| 56 | 18800 | 16800 | 14700 | – | – | – | – |
| 58 | 19400 | 17400 | 15100 | – | – | – | – |
| 62 | 20600 | 18600 | 15500 | – | – | – | – |
| 66 | 21800 | 19800 | 15900 | – | – | – | – |
| 70 | 23000 | 21000 | 16300 | – | – | – | – |
FAQs:
Q1: What certifications are available for this marine modular accommodation ship’s ladder?
A1: We offer a range of certifications, including CCS, DNV, BV, LR, KR, NK, and RINA, among others, to meet the specific requirements of our clients.
Q2: Can the ladder be customized to fit different vessel sizes?
A2: Yes, we provide OEM service to customize the ladder according to your vessel’s specific dimensions and requirements.
Q3: What materials are used in the construction of the ladder?
A3: The ladder is made of high-strength aluminum alloy, while the upper platform, lower platform, post, turning device, close device, and winch are constructed from robust steel for added safety and stability.
Q4: How easy is it to install the ladder on a vessel?
A4: The ladder is pre-assembled and can be effortlessly lifted on board or directly welded onto the vessel, making the installation process quick and straightforward.
Q5: Does the ladder comply with international maritime safety standards?
A5: Yes, the ladder strictly adheres to the ISO5488-1979 standard and has received approval from the CB/T14360-1993 standard, ensuring its compliance with international maritime safety regulations.
Please Note: The description might be incorrect, please contact us for confirmation.
