Shipbuilding and Marine Cables for Diverse Applications

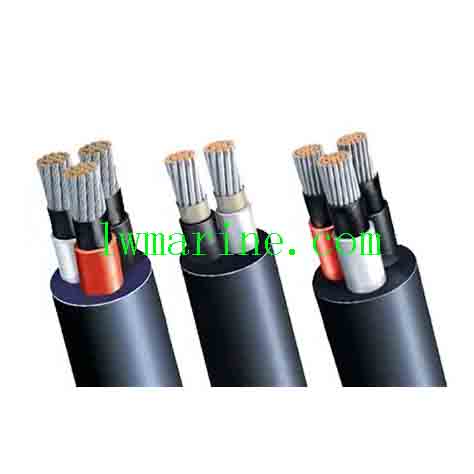

Shipbuilding Marine Cable: Robust and Reliable for Marine & Offshore Environments
Our Shipbuilding Marine Cable is meticulously engineered to meet the rigorous demands of marine and offshore industries, including various types of ships, ship repair facilities, oil platforms, and other offshore structures. These cables are ideal for control devices and general electric lighting, as well as machinery and equipment in factories and mines, ensuring seamless operation in challenging environments.
Cable Models Available:
- 0.6/1kV Series: SPYCBY, (FA-) SPYCBY, TPYCY, (FA-)TPYCY
- 3.6/6kV Series: SPYCBY, (FA-) SPYCBY, TPYCY, (FA-)TPYCY
- 6/10kV Series: SPYCBY, (FA-) SPYCBY, TPYCY, (FA-)TPYCY
Compliance with International Standards:
- IEC 60332-3 Cat.A (for FA-type cables)
- JISC 3410-1999
- IEC 60332-1S
Key Features:
- Flame Retardant: Ensures safety in fire-prone environments.
- Superior Flexibility: Easy to install and maneuver around tight spaces.
- Flame & Cold Resistant: Withstands extreme temperatures without compromising performance.
- Drilling Mud Resistant: Perfect for drilling platforms and oil exploration sites.
- Excellent Resistance to Oil, Abrasion, Petrochemical Fluids, Moisture & Sunlight: Ensures longevity and durability in harsh conditions.
Applications:
- Commercial marine applications
- Modules and platforms
- Onshore and offshore drilling platforms
- FPSO (Floating Production Storage and Offloading) vessels
Cable Construction:
- Conductor: Tinned stranded copper for enhanced conductivity and corrosion resistance.
- Insulation: EPR (Ethylene Propylene Rubber) as per JIS C 3410 for superior electrical properties.
- Bedding: PVC (Polyvinyl Chloride) for additional protection and insulation.
- Armor: Galvanized steel wire braid for mechanical strength and protection against physical damage.
- Sheath: PVC for resistance to environmental factors and chemicals.
Cat5E UTP/FTP Armoured Data Cable: Enhanced Protection for Marine Networks
Our Cat5E UTP/FTP Armoured Data Cable is designed for Gigabit Ethernet and other network protocols, suitable for basic voice and data installations up to 100 MHz. These cables feature a copper wire braid armor and a flame retardant, mud-resistant outer sheath, providing additional mechanical protection while maintaining flexibility.
Compliance with Standards:
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004
Cable Construction:
- Conductors: 24AWG solid bare copper for reliable signal transmission.
- Insulation: HDPE (High-Density Polyethylene) for excellent electrical insulation.
- Twinning: Two colored insulated conductors twisted together to form a pair, reducing crosstalk.
- Bedding: Flame retardant, low smoke, and halogen-free polyolefin, colored black for easy identification.
- Armor: 0.2/0.3mm copper wire braid for enhanced mechanical protection.
- Outer Sheath: Low smoke and halogen-free polyolefin for safety in fire situations.
Technical Data:
- AWG: 18
- Nominal Conductor Diameter: 1 mm
- Maximum DC Resistance @20℃: 9.38 Ω/100m
- Maximum DCR Unbalance: 5%
- Maximum Mutual Capacitance: 55.8 pF/m
- Maximum Capacitance Unbalance: 330 pF/100m
- Characteristic Impedance @1-100MHz: 100 ± 15 Ω
- Maximum Propagation Delay Skew: 45 ns/100m
Optional Variants:
- Cat5E F/UTP: Features collective shielding of aluminium/polyester tape with a drain wire for enhanced electromagnetic interference protection.
- Cat5E SF/UTP: Offers double collective shieldings of aluminium/polyester tape and copper wire braid with a drain wire for maximum protection against EMI and RFI.
Mechanical and Thermal Properties:
- Bending Radius: 8×OD (during installation); 4×OD (fixed installed) for easy handling and installation.
- Temperature Range: -30℃ to +75℃ for reliable performance in extreme temperatures.
FAQs
Q1: What makes your Shipbuilding Marine Cable suitable for offshore drilling platforms?
A1: Our Shipbuilding Marine Cable is designed with flame retardant, cold resistant, and drilling mud resistant properties, making it ideal for the harsh conditions encountered on offshore drilling platforms. Additionally, its excellent resistance to oil, abrasion, petrochemical fluids, moisture, and sunlight ensures longevity and reliable performance.
Q2: Can your Cat5E Armoured Data Cable be used in marine environments?
A2: Absolutely! Our Cat5E Armoured Data Cable features a copper wire braid armor and a flame retardant, mud-resistant outer sheath, providing additional mechanical protection while maintaining flexibility. This makes it perfect for marine environments where durability and reliability are crucial.
Q3: What is the difference between Cat5E F/UTP and Cat5E SF/UTP cables?
A3: Cat5E F/UTP cables have collective shielding of aluminium/polyester tape with a drain wire, offering enhanced protection against electromagnetic interference (EMI). Cat5E SF/UTP cables, on the other hand, have double collective shieldings of aluminium/polyester tape and copper wire braid with a drain wire, providing maximum protection against both EMI and radio frequency interference (RFI).
Q4: What is the temperature range for your marine cables?
A4: Our marine cables are designed to operate reliably within a temperature range of -30℃ to +75℃, ensuring consistent performance even in extreme temperature conditions.
Q5: Are your marine cables compliant with international standards?
A5: Yes, our marine cables comply with various international standards, including IEC 60332-3, JISC 3410-1999, IEC 60332-1S for Shipbuilding Marine Cables, and IEC 60332-3-22, IEC 60754-1,2, IEC 61034-1,2, NEK 606:2004 for Cat5E Armoured Data Cables, ensuring their quality and reliability in global markets.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
