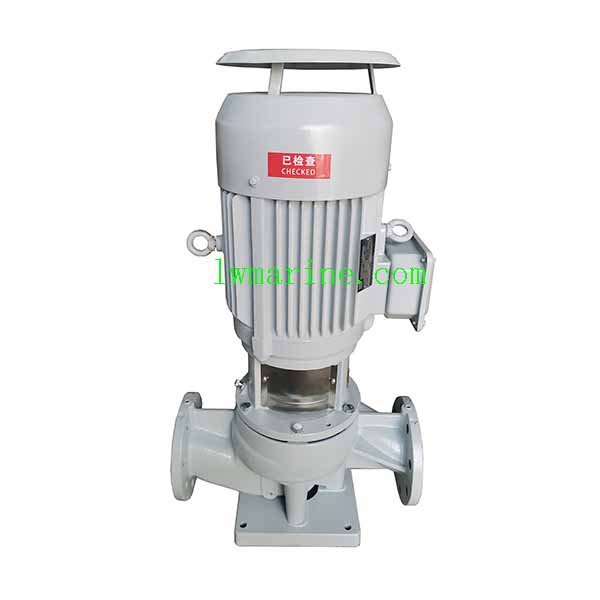

Ship Vertical Fire Pump

Ship Vertical Fire Pump

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Ship Vertical Fire Pump – ISO-Compliant Single-Stage Centrifugal Pumps for Critical Applications

Product Overview
The Ship Vertical Fire Pump is a high-performance single-stage single-suction centrifugal pump designed for fire protection and fluid transfer applications. Engineered to handle clear water and similar liquids at temperatures up to 100°C with maximum working pressures of 1.6MPa, this pump combines robust construction with energy-efficient operation. Certified to CCS and ISO 2858 standards, it offers versatile configuration options including hot water (200°C), chemical, oil, and explosion-proof variants to meet diverse operational requirements.

Model Identification: CSG ((R, H, B, BH)D、CSGB）50-160 (I) A(B, C)

  • CSG: Single-stage single-inlet marine vertical centrifugal pump

  • R/H/B/BH: Hot-water/Chemical/Oil/Non-explosive chemical pump variants

  • D: Reduced speed operation

  • 50: Inlet/outlet diameter (mm)

  • 160: Nominal impeller diameter (mm)

  • I: Flow classification

  • A(B, C): First (second, third) stage impeller trimming

Key Features & Benefits

  • ISO 2858 Compliance: Meets international standards for performance and efficiency

  • Multi-Application Versatility: Configurable for fire, chemical, oil, and hot water service

  • Vertical Space-Saving Design: Compact footprint ideal for marine installations

  • High-Temperature Capability: Handles fluids up to 200°C in hot water configurations

  • Energy Efficient Operation: Optimized hydraulic design reduces power consumption

  • Explosion-Proof Options: Available for hazardous environment applications

  • Corrosion-Resistant Construction: Marine-grade materials ensure long service life

Technical Performance Data

*50Hz/2900 RPM Operation:*

  • Flow Range: 1.1-8.3 m³/h

  • Head Range: 7-50.5 meters

  • Motor Power: 0.18-4 kW

*60Hz/3500 RPM Operation:*

  • Flow Range: 1.3-10 m³/h

  • Head Range: 10.1-72.7 meters

  • Motor Power: 0.25-5.5 kW

Selected Performance Specifications:

  • 25-125: 2.8-5.2 m³/h | 18-20.6m head | 0.75 kW

  • 32-160: 5-8.3 m³/h | 30.2-33.2m head | 1.5-2.2 kW

  • 32-200: 4.5-8.3 m³/h | 42.7-50.5m head | 3-4 kW

Certification & Compliance

  • CCS (China Classification Society) Marine Certification

  • ISO 2858 International Standard Compliance

  • Quality Management System Certification

  • Marine Safety Committee Approval

The description/sizes may be different with goods, please check with us when order.
