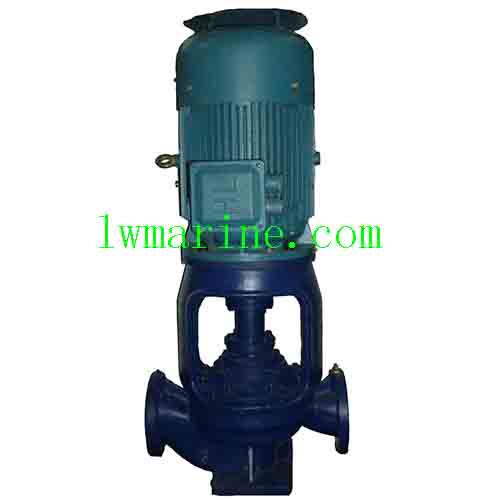

CSGB Series Ship Vertical Centrifugal Pump | Maintenance-Friendly & High-Efficiency Design
Product Overview
The CSGB Series Ship Vertical Centrifugal Pump represents a breakthrough in maintenance-friendly marine pumping technology. Engineered with a revolutionary detachable structure and powered by reliable YH Series motors, these vertical centrifugal pumps solve the longstanding industry challenge of maintaining high-power pump systems. The innovative design allows for quick and easy replacement of critical components including bearings, mechanical seals, and impellers without complete disassembly, significantly reducing downtime and maintenance costs.
Advanced Modular Design Features
-
Quick-Disassembly Structure: Enables rapid access to internal components for maintenance
-
YH Series Marine Motors: Specifically designed for marine environments with enhanced corrosion protection
-
Component Accessibility: Simplified replacement of wear parts including mechanical seals, bearing assemblies, and impellers
-
Vertical Space-Saving Configuration: Ideal for engine rooms and confined marine spaces
Model Identification: CSGB 50-160 (I) A(B,C)
-
CSGB: Marine vertical removable pipeline centrifugal pump
-
50: Inlet/outlet diameter (50 mm)
-
160: Nominal impeller diameter (160 mm)
-
I: Flow classification
-
A(B,C): First (second, third) stage impeller trimming
Technical Specifications
-
Flow Capacity: 1.1–1740 m³/h
-
Head Range: 7–180 m
-
Motor Power: 0.18–250 kW
-
Operating Speed: 1450/1800/2900/3500 rpm
-
Voltage Compatibility: 380/440V
-
Frequency Options: 50Hz/60Hz operation
Performance Data Highlights
| Model | Capacity (m³/h) | Head (m) | Motor Power (kW) | Efficiency (%) |
|---|---|---|---|---|
| CSGB15-80 | 1.1-2.0 | 7.0-8.5 | 0.18-0.25 | 26-34 |
| CSGB20-160 | 1.8-3.3 | 30-33 | 1.1-1.5 | 19-25 |
| CSGB200-500(I)B | 242-450 | 52.5-63.8 | 90-132 | 74-76 |
| CSGB350-400 | 600-960 | 45.5-55 | 160-250 | 77-83 |
| CSGB500-315 | 1000-1450 | 27-34.5 | 160-250 | 78-80 |
The description/sizes may be different with goods, please check with us when order.
