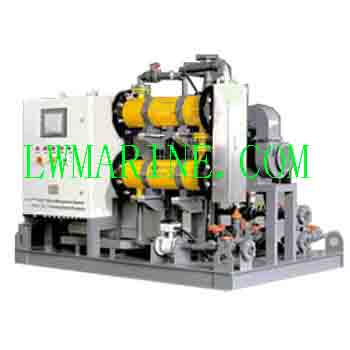

Ship UV Ballast System

200 m³/h Ship UV Ballast System (BWMS) | IMO & USCG Certified

Eco-Friendly Ballast Water Treatment for Marine Environmental Protection

International maritime regulations (IMO Ballast Water Management Convention) require ships to treat ballast water to prevent the transfer of harmful aquatic organisms and pathogens. Our Ship UV Ballast System offers a proven, chemical-free disinfection solution that is safe for crew and marine ecosystems. Utilizing medium-pressure ultraviolet (MPUV) technology, it effectively neutralizes bacteria, viruses, and microorganisms without producing harmful by-products, making it an economical and environmentally friendly choice for ship owners and operators worldwide.

Key Features & Benefits of Our UV Ballast Water Treatment Plant

Advanced UV Disinfection Technology: Medium Pressure UV reactors deliver high-intensity ultraviolet light at 200-280nm wavelengths, effectively damaging organism DNA/RNA for reliable ballast water sterilization without chemicals.
IMO & USCG Type Approval: Our system is designed to meet and exceed IMO D-2 standards and US Coast Guard (USCG) regulations. Certifications available from major IACS members (BV, CCS, DNV GL, ABS, LR, NK, RINA, RS).
Compact & Flexible Design: Optimized footprint allows for both horizontal (2480x1300x1926mm) and vertical (1150x1150x2490mm) installation, ideal for retrofitting existing ships and new builds with limited engine room space.
Automatic Backflush Filter: Integrated auto-flushing filter (Type SJY200) efficiently removes large sediments, zooplankton, and particles (>50μm & high rate for smaller ones)3, reducing UV chamber load and preventing clogging.
Energy Efficient Operation: Lower power consumption (27-36 kW) compared to many electrochemical systems. Automatic operation reduces crew workload.
Comprehensive System Monitoring: Features flow meters, UV intensity sensors, temperature sensors, and differential pressure gauges for real-time performance tracking and data reporting compliant with regulations.
Robust Construction & Components: System utilizes pneumatic valves (DN150 PN10), sludge pumps, and corrosion-resistant materials (WCB) suitable for harsh marine environments.

Technical Specifications: 200 m³/h BWMS Unit

Parameter	Specification
Model	P-200
Flow Rate Capacity	100 – 200 m³/h
Power Consumption	27 kW / 36 kW
Horizontal Layout (LxWxH)	2480 x 1300 x 1926 mm
Vertical Layout (LxWxH)	1150 x 1150 x 2490 mm
UV Reactor	Type UV200
Filter Unit	Type SJY200 (Auto-flushing)
Flow Meter	200 m³/h; 4~20mA output
Backflush Pump	3 KW; 2 MPa
Sludge Pump	21 m³/h; 4~20mA
Valve Actuation	Pneumatic (Standard)
Design Standard	IMO MEPC.300(72), USCG 46 CFR 162.060

How It Works: BWMS Operating Principle

During Ballasting: Ballast water from the pump first passes through the automatic self-cleaning filter, which removes larger organisms, sediments, and particulates. The water then enters the MPUV reactor chamber, where it receives a precise dose of ultraviolet irradiation, effectively disinfecting it by disrupting the DNA of microorganisms, algae, and bacteria before the water enters the ballast tank.
During De-ballasting: Stored ballast water is pumped directly from the tank through the MPUV reactor for a second disinfection cycle (bypassing the filter) to eliminate any potential organisms that may have reproduced during storage, ensuring safe discharge overboard compliant with IMO D-2 standards.

System Components & Bill of Materials

No.	Component Name	Specification / Details
1	Auto-flushing Filter	Type: SJY200
2	UV Reactor Chamber	Type: UV200
3	Flow Meter	200 m³/h; 4~20mA signal
4	Sludge Pump	21 m³/h; 4~20mA control
5	Filter Inlet Valve	Pneumatic Valve DN150 PN10
6	Filter Bypass Valve	Pneumatic Valve DN150 PN10
7	UV Outlet Valve	Pneumatic Valve DN150 PN10
…	…	…
23	Backwash Pump	3KW; 2MPa

(Full detailed list included in product datasheet)

Certifications & Class Society Approval

Our Ballast Water Management System is certified and can be approved by all major International Association of Classification Societies (IACS) members, including:
