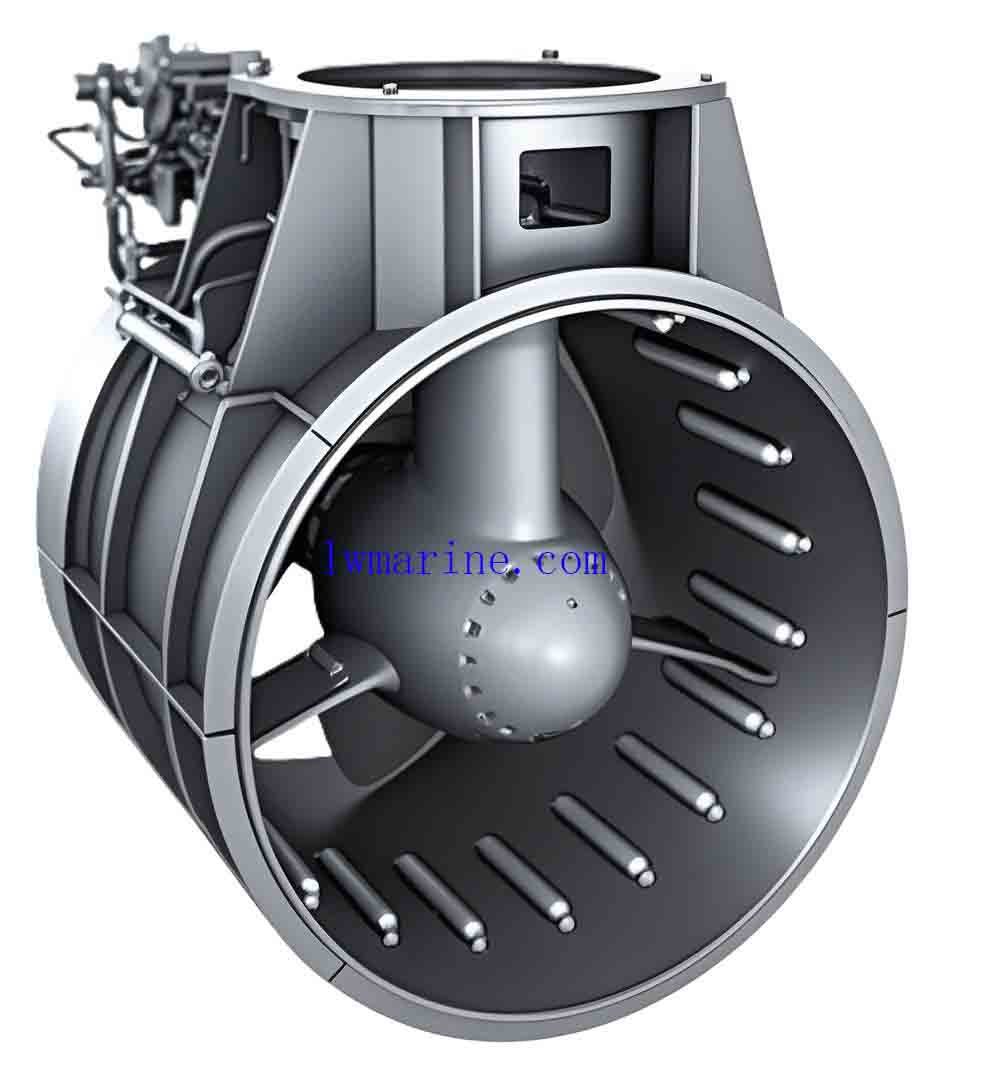

Ship Thruster – High-Efficiency Maneuvering System
Product Overview
Our Ship Transverse Thruster provide precise lateral thrust for enhanced vessel control during docking, dynamic positioning, and slow-speed navigation. Available in CPP (Controllable Pitch Propeller) and FPP (Fixed Pitch Propeller) configurations, these thrusters can be diesel-engine, electric-motor, or hydraulically driven, with vertical or horizontal installation options.
Key Features & Benefits
✔ Multi-Drive Compatibility – Diesel, electric, or hydraulic power
✔ Propeller Pitch Options – CPP (adjustable thrust) or FPP (simple & robust)
✔ Installation Flexibility – Vertical or horizontal mounting for space optimization
✔ Certified Performance – Approved by ABS, BV, CCS, DNV, KR, GL, NK, RINA
Advanced Engineering Features
-
Optimized Propeller Design
-
Smaller diameter, higher efficiency – Maximizes thrust while minimizing space
-
Skewed blades & large disk ratio – Reduces vibration & cavitation
-
-
High-Strength Drivetrain
-
Hardened gears & bearings – Dipped in oil for superior lubrication & cooling
-
Extended lifespan – Engineered for low wear & high reliability
-
-
Robust Underwater Structure
-
Compact, corrosion-resistant – Minimizes drag & maintenance
-
Enhanced stern seal – Meets strict marine anti-pollution regulations
-
Applications
-
Commercial Ships (tankers, bulk carriers, ferries)
-
Offshore Vessels (platform supply, DP operations)
-
Port & Harbor Craft (tugs, pilot boats)
Why Choose Our Transverse Thrusters?
✓ Higher Thrust Efficiency – Optimized propeller-to-speed ratio
✓ Lower Noise & Vibration – Advanced blade geometry
✓ Easy Maintenance – Modular design for quick servicing
✓ Global Compliance – Fully certified for international operations
Available Configurations
| Type | Drive System | Installation | Certifications |
|---|---|---|---|
| CPP | Diesel/Electric/Hydraulic | Vertical/Horizontal | ABS, BV, DNV, etc. |
| FPP | Diesel/Electric/Hydraulic | Vertical/Horizontal | CCS, KR, GL, etc. |
Parameters:
| Model | Motor Hz | Output rpm | Tunnel length | Tunnel thickness | Max Power | Propeller diameter | Propeller type |
| MTT70 | 50 | 781 | 1000 | 10 | 120 | 700 | FPP |
| 60 | 937 | ||||||
| MTT90 | 50 | 657 | 1200 | 10 | 230 | 900 | FPP |
| 60 | 789 | ||||||
| MTT110 | 50 | 465 | 1400 | 15 | 335 | 1100 | FPP, CPP |
| 60 | 556 | ||||||
| MTT130 | 50 | 390 | 1500 | 15 | 480 | 1300 | FPP, CPP |
| 60 | 467 | ||||||
| MTT165 | 50 | 312 | 1820 | 15 | 770 | 1650 | FPP, CPP |
| 60 | 374 | ||||||
| MTT185 | 50 | 271 | 2050 | 20 | 990 | 1850 | FPP, CPP |
| 60 | 325 | ||||||
| MTT200 | 50 | 298 | 2150 | 20 | 1180 | 2000 | FPP, CPP |
| 60 | 236 | ||||||
| MTT225 | 50 | 219 | 2350 | 25 | 1430 | 2250 | FPP, CPP |
| 60 | 267 | ||||||
| MTT245 | 50 | 206 | 2650 | 25 | 1980 | 2450 | FPP, CPP |
| 60 | 245 | ||||||
| MTT265 | 50 | 209 | 2900 | 25 | 2250 | 2650 | FPP, CPP |
| 60 | 199 | ||||||
| MTT285 | 50 | 216 | 3100 | 30 | 2680 | 2850 | CPP |
| 60 | 193 | ||||||
| MTT300 | 50 | 164 | 3300 | 30 | 3000 | 3000 | CPP |
| 60 | 197 |
The description/sizes may be different with goods, please check with us when order.
