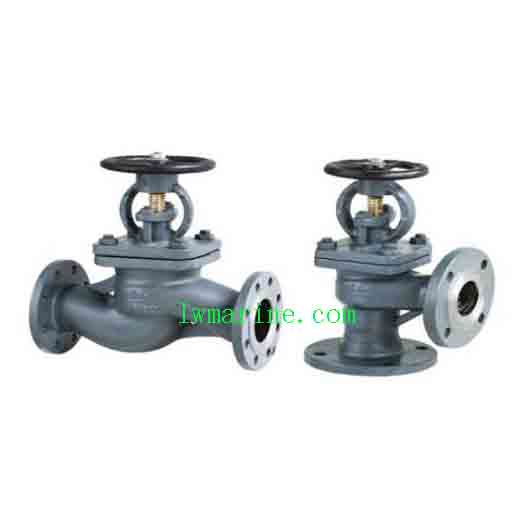

Ship Stop Check Valve

Ship Stop Check Valve

Achieve superior flow control and system protection in your vessel’s piping with our premium GB/T 1853-2008 Ship Cast Steel Stop Check Valve. This is a high-performance, dual-function marine valve engineered for critical applications in both seawater and freshwater systems aboard ships and offshore installations. It combines the positive shutoff capability of a stop valve with the automatic backflow prevention of a check valve into a single, robust unit.

This marine stop check valve is designed to deliver reliable, long-lasting performance in the most demanding marine environments. Its dual functionality simplifies piping layouts and enhances system safety by ensuring that flow can be manually isolated and automatically prevented from reversing. This is essential for protecting pumps, compressors, and other critical equipment in systems such as seawater cooling, ballast, and bilge management.

Constructed from high-grade materials, the valve features a durable cast steel body with corrosion-resistant bronze internals (disc and seat). This combination provides exceptional structural integrity for pressure containment while ensuring excellent sealing and resistance to seawater corrosion. With a pressure rating of 0.6MPa and a comprehensive size range from DN40 to DN350, it is a versatile and reliable choice for shipbuilders, repair yards, and marine engineers.

Key Features & Benefits

• Dual-Function Design: Integrates two critical functions in one valve body:

  • Positive Shutoff: Functions as a manual stop valve to completely isolate flow when closed.

  • Backflow Prevention: Automatically acts as a check valve, closing to prevent reverse flow when downstream pressure drops.

• Premium Material Construction:

  • Body & Cover: High-grade cast steel for robust structural integrity and pressure containment.

  • Disc & Seat: Cast tin bronze for superior corrosion resistance in seawater and reliable sealing.

  • Stem: Aluminum bronze for smooth, wear-resistant operation.

  • Customization: Special alloys available upon request for specific fluid compatibility.

• Technical Excellence:

  • Pressure Rating: 0.6MPa, suitable for a wide range of marine piping systems.

  • Size Range: Comprehensive coverage from DN40 to DN350 to suit various pipe diameters.

  • Media Compatibility: Suitable for seawater, freshwater, and various other marine fluids.

• Standard Compliance: Manufactured to meet the specifications of GB/T 1853-2008, ensuring dimensional and performance consistency.

Applications & Industries

This versatile valve is widely used across the maritime sector:

• Marine seawater cooling systems

• Shipboard freshwater distribution networks

• Offshore platform fluid control

• Naval vessel critical systems

• Ballast and bilge water management

• Port and terminal infrastructure

• Shipbuilding and repair operations

Technical Specifications

The GB/T 1853-2008 ship stop check valve is available in Type A and Type B configurations. The table below provides detailed dimensions for the standard range.

---

Frequently Asked Questions (FAQ)

1. What is the difference between a stop valve, a check valve, and a stop check valve?

• Stop Valve (Globe Valve): Used to start, stop, and regulate flow manually. It provides positive shutoff.

• Check Valve: An automatic valve that allows flow in one direction only. It closes automatically if flow reverses, preventing backflow.

• Stop Check Valve: A dual-function valve that combines both. It can be manually closed to act as a stop valve. When left open, its internal disc is free to move and will automatically seat to prevent backflow, functioning as a check valve. This provides both isolation and automatic protection in a single unit.

2. Why are bronze internals used in a cast steel valve for marine applications?
This combination leverages the strengths of both materials. The cast steel body provides the high strength and pressure containment required for the valve structure. The cast tin bronze disc and seat are used because bronze offers excellent natural resistance to corrosion from seawater and other marine fluids. This ensures that the critical sealing surfaces remain in good condition, providing a tight shutoff and reliable check valve operation over many years.

3. What does the 0.6MPa pressure rating mean for this valve?
The 0.6MPa rating indicates the maximum internal pressure the valve can safely withstand at its designated temperature (typically ambient marine temperatures). 0.6 MPa is equivalent to approximately 6 bar or 87 psi. This makes it suitable for a wide range of low-to-medium pressure marine applications, such as gravity-fed systems, cooling water circuits, and bilge and ballast lines, but it may not be suitable for high-pressure hydraulic or fuel injection systems.

4. What is the difference between Type A and Type B configurations?
While the provided data table includes dimensions for both types (columns A and B), the specific distinction between Type A and Type B for this GB/T 1853-2008 valve typically refers to variations in the end connections, face-to-face dimensions, or the specific design of the bonnet or disc. Type A and Type B offer flexibility to match different piping layouts and installation requirements. Please refer to the dimensional drawings or consult with our engineers to select the correct type for your system.

5. Can this valve be used in a seawater cooling system?
Yes, absolutely. This valve is specifically designed for marine seawater cooling systems and similar applications. The combination of the cast steel body and bronze internals (disc and seat) provides the necessary strength and corrosion resistance to handle the corrosive nature of seawater reliably.

6. What sizes are available, and how do I choose the right one?
We offer a comprehensive size range from DN40 to DN350. To select the correct size, you must match the valve’s end connection dimensions (D, D1, bolt hole patterns) to the flanges in your piping system. The valve’s internal diameter (DN) should generally match the pipe size to avoid unnecessary flow restriction. Consult your piping and instrumentation diagram (P&ID) for the specified line size.

Note: The description might be incorrect, please contact us for confirmation.
