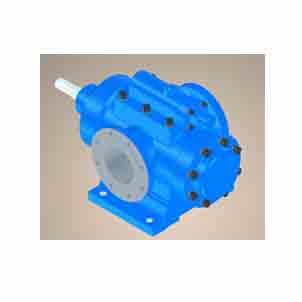

Ship SN Series Three Screw Pump
Main Feature
SN three – spindle screw pump is of self – priming. Because of the unit assembly system, every pump can be supplied as a cartridge pump for foot – flange or wall mounting, in pedestal – bracket or submersible design. According to the delivery medium (heated or cooled), designs are also available.
Usage
For the handling of oil and medium with lubricating properties.
Application
- In heating techniques as fuel oil and medium with lubricating properties.
- In the engineering industry as hydraulic – and telemotor pumps.
- In the chemical and food industry as cargo – transfer or supply pumps.
- In the marine field as transfer – booster – fuel oil pumps as well as for ship hydraulics.
Characteristics
- Stable Hydraulic Balance: The rotor has hydraulic balance, with small vibration and low noise.
- Stable Output: The output is stable with no pulsation and high efficiency.
- Strong Self – Priming Ability: It has a strong self – priming ability.
- Versatile Component Design: The components adopt a versatile and strong series design, available in multiple installation methods.
- Compact Structure: The structure is compact, with a small volume and light weight, and can work at relatively high speeds.
Performance Tables (at different rotational speeds)
Rotational speed n = 950r/min
| Size | Pressure MPa | 3 | 6 | 12 | 20 | 40 | 75 | 150 | 380 | 760 |
|---|---|---|---|---|---|---|---|---|---|---|
| Viscosity cSt | ||||||||||
| 40 – 38 | Flow rate m³/h | 0.15 | 0.18 | 0.24 | 0.27 | 0.19 | 0.14 | 0.12 | 0.19 | 0.24 |
| Shaft power kW | 0.16 | 0.17 | 0.24 | 0.29 | 0.14 | 0.17 | 0.18 | 0.36 | 0.74 | |
| … | … | … | … | … | … | … | … | … | … | … |
(The table continues with data for different sizes and viscosities)
Rotational speed n = 1450r/min
| Size | Pressure MPa | 3 | 6 | 12 | 20 | 40 | 75 | 150 | 380 | 760 |
|---|---|---|---|---|---|---|---|---|---|---|
| Viscosity cSt | ||||||||||
| 120 – 42 | Flow rate m³/h | 1.0 | 1.5 | 3.7 | 7.9 | 17.9 | 56.7 | 179.6 | 529.1 | 865.3 |
| Shaft power kW | 1.0 | 1.5 | 3.7 | 7.9 | 17.9 | 56.7 | 179.6 | 529.1 | 865.3 | |
| … | … | … | … | … | … | … | … | … | … | … |
(The table continues with data for different sizes and viscosities at 1450r/min, and similar tables are provided for other rotational speeds such as 2000 – 42, 2900r/min etc.)
Attention please: The description may be different with the product, please contact us for quotation.
