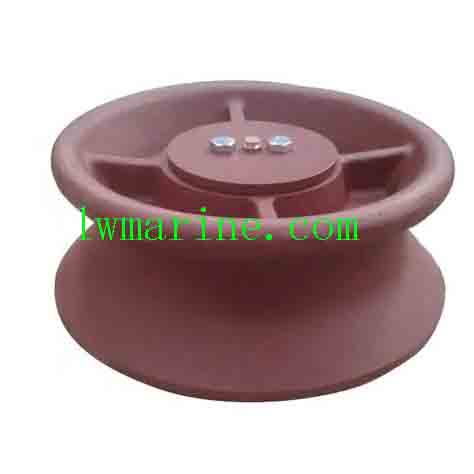

Ship Single Roller Fairlead

CB/T 436-2000 Ship Single Roller Fairlead Type B – Premium Chinese Standard Mooring Solution

Optimized for Smooth & Reliable Rope Guidance
Our Type B Ship Single Roller Fairlead meets strict CB/T 436-2000 standards, delivering:
✔ Superior Maneuverability – Flexible rotation for optimal rope alignment
✔ Robust Construction – Cast steel & steel plate for heavy-duty performance
✔ IACS Certified – Approved by international classification societies
✔ Standard & Custom Options – Available to match your specific requirements

Technical Specifications:
• Model: Single Roller Fairlead Type B
• Materials: High-grade cast steel & steel plate
• Diameter Range: 150-450mm
• Standard: Fully compliant with CB/T 436-2000

Parameters:

Roller Dia.	Weight		Dimensions											Max.Dia.of Applicable Ropes
	(kg)		(mm)											(for reference)
	Fairlead Roller	Pedestal	a	D1	D2	D3	D4	H	H1	L	S	t	t1	Synthetic Fiber Rope	Hemp Rope	Steel Wire(GB/T 8918) Tensile Strength 1570MPa
	Fairlead Roller	Pedestal	a	D1	D2	D3	D4	H	H1	L	S	t	t1	Synthetic Fiber Rope	Hemp Rope	6×24	6×37
150	24.8	129	60	240	90	85	264	154	30	75	5	12	8	32	45	16~18	14~16
200	49.3	178	60	310	115	110	338	186	30	85	5	14	10	40	55	22	20
250	92	207	80	380	135	130	408	230	35	100	6	14	10	45	65	24	24
300	127	265	80	440	155	150	472	255	35	100	7	16	12	50	70	30	28
350	168	332	80	500	175	170	536	271	35	100	7	18	14	55	75	38	34
400	252.5	401.3	100	560	185	180	600	307	40	100	7	20	16	65	85	40~42	38~40
450	310	452	100	630	210	205	670	316	40	120	7	20	16	80	/	44	42~44
