Ship Self Priming Centrifugal Pump

Ship Self Priming Centrifugal Pump

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

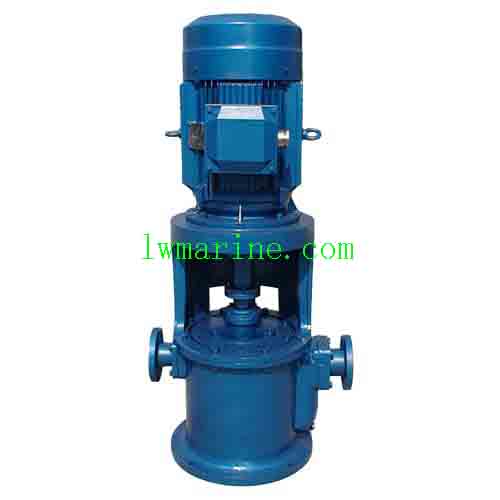

CLZ Series Ship Vertical Self Priming Centrifugal Pump – Superior Marine Fluid Management Solutions

Product Overview
Engineered for excellence in the most demanding maritime conditions, the CLZ Series Ship Vertical Self-Priming Centrifugal Pump delivers exceptional performance for critical vessel operations. These advanced pumps are specifically designed for marine bilge pumping applications, ballast water transfer systems, engine cooling water circulation, and marine fire protection systems. Featuring a space-saving vertical configuration and reliable self-priming capability, they ensure continuous operation in confined spaces and challenging marine environments.

Key Benefits & Features

  • Compact Vertical Design: Ideal for space-constrained engine rooms and marine installations

  • Instant Self-Priming Operation: Automatic priming eliminates manual intervention and reduces downtime

  • Marine-Grade Construction: Corrosion-resistant materials withstand harsh saltwater environments

  • Energy-Saving Performance: Optimized hydraulic design reduces power consumption and operating costs

  • Exceptional Suction Performance: Low NPSH requirements ensure reliable operation under varying conditions

  • Quick Maintenance Access: Simplified design enables easy inspection and serviceability

  • Vibration-Reduced Operation: Balanced impeller design ensures smooth performance and longer lifespan

Model Identification: 100CLZ-13A

  • 100: Inlet/outlet diameter (100 mm)

  • CLZ: Marine vertical self-priming centrifugal pump

  • 13: Specific speed divided by 10

  • A: First impeller trim (B indicates second trim)

Performance Specifications (50Hz/2900RPM & 60Hz/3500RPM)

Model Capacity (m³/h) Head (m) Motor Power (kW) NPSHr (m) Inlet/Outlet (mm)
40CLZ-2 5-6 54-86.4 5.5-11 4.4 40/32
50CLZ Series 10-27 12-72 1.5-11 4.4 50
65CLZ Series 21-42 17-115.2 2.2-30 4.4-4.9 65
80CLZ Series 40-72 18-172.8 4-75 4.9-5.9 80
100CLZ Series 72-120 18-172.8 7.5-132 4.9-5.7 100
125CLZ Series 150-240 18-180 15-280 5.5-6.4 125

Technical Superiority

  • Vertical Space Optimization: Minimal footprint with maximum performance output

  • Advanced Self-Priming Technology: Efficient handling of air-water mixtures without manual priming

  • Marine-Specific Materials: Special alloys and coatings for enhanced corrosion resistance

  • Comprehensive Size Range: Available from 40mm to 125mm connection sizes

  • Temperature Adaptability: Suitable for various fluid temperatures and environmental conditions

  • Maintenance-Friendly Design: Quick-disconnect components for easy servicing

  • Noise-Reduced Operation: Quiet performance ideal for crew accommodations and sensitive areas

The description/sizes may be different with goods, please check with us when order.
