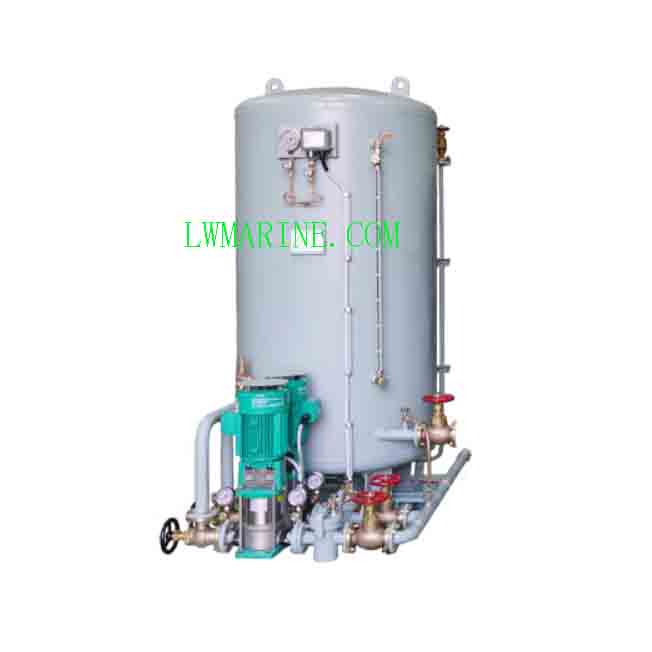

We are Ship Pressure Water Tank Manufacturer in China. It is specifically designed for demanding marine and offshore applications. Built entirely with corrosion-resistant stainless steel, this robust pressure vessel system ensures reliable and continuous seawater supply under high-pressure conditions, ideal for firefighting, deck washing, cooling systems, and other essential marine services.
Certified to meet international maritime standards, this hydrophore system features a durable design with a working pressure of 0.66MPa and superior sealing integrity tested at 0.99MPa. Each unit is fully customizable based on your vessel’s physical layout and operational requirements.
🔹 Key Features & Benefits:
-
✅ Fully Stainless Steel Construction: Superior corrosion resistance for extended service life in seawater environments
-
✅ High-Pressure Performance: Working pressure 0.66MPa, design pressure 0.6MPa
-
✅ Comprehensive Safety Systems: Includes safety valves, stop check valves, and pressure controllers
-
✅ Flexible Customization: Appendix locations and system configuration tailored to your vessel’s layout
-
✅ Reliable Monitoring: Equipped with liquid level gauge, dual pressure gauges, and manual/auto control options
-
✅ IMO-Compliant: Suitable for all marine vessels and offshore platforms
📋 Technical Specifications:
-
Design Pressure: 0.6MPa
-
Working Pressure: 0.66MPa
-
Sealing Test Pressure: 0.99MPa
-
Strength Test Pressure: 0.825MPa
-
Main Material: Stainless Steel
-
Standard Models Available with Custom Configuration Options
🛠️ System Components Include:
-
Public base and main assembly body
-
ULG-1000H liquid level gauge (copper)
-
Stop check valve (GB596 standard)
-
A27H-10 safety valves (Q235A material)
-
Pressure controller (YPK-03-C-01)
-
Dual YC-100T pressure gauges
-
DN375 manhole lid for easy maintenance
-
Custom-mounted screw seats and data plate
The description/sizes may be different with goods, please check with us when order.
