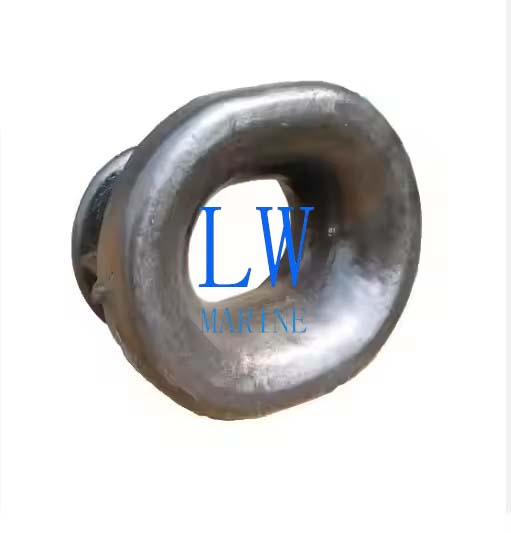

Ship Mooring Chock
The CB T34-2007 Ship Mooring Chock is a vital marine accessory meticulously designed for installation on ship bulwarks or decks. Its primary function is to safely guide and control mooring ropes, ensuring smooth and secure vessel anchoring. Crafted from high-grade cast steel, this chock offers exceptional durability and performance, even in the most demanding marine environments. Available in five variations (Type A, AF, B, BF, and C), it caters to diverse vessel requirements, providing optimal compatibility with various mooring systems.
Key Features & Long-Tail Keywords:
- Multiple Configuration Options: Choose from Type A, AF, B, BF, or C for tailored compatibility with your ship’s mooring setup.
- High-Strength Cast Steel Construction: Built to endure harsh marine conditions, ensuring long-term reliability and safety.
- Industry-Compliant Design: Fully adheres to CB T34-2007 standards for marine equipment excellence.
- Globally Recognized Certifications: Approved by leading classification societies such as CCS, DNV·GL, ABS, BV, LR, RS, KR, and more, ensuring international acceptance.
- Marine Rope Guidance System: Expertly guides mooring ropes, minimizing wear and enhancing operational efficiency.
- Durable Ship Mooring Equipment: Designed for prolonged use, reducing maintenance costs and downtime.
Additional Long-Tail Keywords:
- CB T34-2007 compliant mooring chock
- High-durability ship rope guide
- Customizable marine mooring equipment
- Globally certified ship mooring chock
- Long-service-life marine chock
Why Trust Our Mooring Chocks?
- Proven Expertise: Years of experience top-quality marine equipment.
- Rigorous Quality Control: Each chock undergoes stringent testing to meet international standards.
- Custom Solutions: We offer mooring chocks compliant with various national standards to meet your specific needs.
Parameters:
| Nominal Size L (mm) | Max Diameter Synthetic Fiber Rope (mm) | Max Diameter Steel Cable (mm) | Max Diameter Hemp Rope (mm) | Max Circumference (mm) | Weight (kg) | L1 (mm) | B (mm) | B1 (mm) | d (mm) | R (mm) | R1 (mm) | t (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120 | 40 | – | 90 | – | 4 | 270 | 80 | 220 | 30 | 40 | 8 | 5 |
| 160 | 45 | 15 | 125 | – | 9 | 360 | 110 | 300 | 40 | 55 | 8 | 5 |
| 200 | 50 | 18.5 | 160 | – | 18 | 450 | 130 | 350 | 50 | 65 | 8 | 8 |
| 260 | 60 | 22.5 | 200 | – | 30 | 570 | 170 | 440 | 60 | 85 | 8 | 8 |
| 320 | 70 | 28 | 230 | – | 49 | 700 | 200 | 500 | 70 | 100 | 8 | 10 |
JISF2017 BC Type Bulwark Mounted Panama Chock: Robust Marine Rope Guide for Diverse Vessels
The JISF2017 BC Type Bulwark Mounted Panama Chock is a high-quality marine accessory crafted from cast steel. Designed for installation on the bulwark of vessels, it provides reliable rope guidance for various types of ships, including tankers, tugs, and boats. This chock is available in complete product sizes and is approved by major classification societies such as ABS, LR, BV, CCS, and NK.
Key Features:
- Cast Steel Construction: Ensures durability and resistance to corrosion.
- Complete Product Sizes: Caters to diverse vessel requirements.
- Globally Approved: Meets international standards for marine equipment.
- Wide Application: Suitable for all kinds of ships, vessels, boats, tankers, and tugs.
Size Chart:
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Size D (mm) | Size E (mm) | Weight (KG) |
|---|---|---|---|---|---|---|
| PBC-001 | 310 | 734 | 684 | 462 | 652 | 276 |
| PBC-002 | 360 | 788 | 688 | 464 | 704 | 305 |
| PBC-003 | 400 | 832 | 692 | 470 | 750 | 344 |
| PBC-004 | 450 | 886 | 696 | 474 | 802 | 385 |
| PBC-005 | 500 | 940 | 700 | 478 | 854 | 422 |
JISF2005 Closed Chock: Durable Deck-Mounted Rope Guide for Marine Safety
The JISF2005 Closed Chock is a popular deck-mounted rope guide made from cast steel. Known for its durability and reliability, it is finished within 7 to 15 days and approved by major classification societies such as ABS, LR, BV, NK, and CCS. This chock is an essential marine accessory for ensuring secure rope handling on ships.
Key Features:
- Cast Steel Construction: Provides strength and resistance to corrosion.
- Quick Turnaround Time: Finished within 7 to 15 days.
- Globally Approved: Meets international standards for marine equipment.
- Deck-Mounted Design: Easy to install and maintain.
Size Chart:
| Product No. | Dimension L (mm) | Dimension L1 (mm) | Dimension B (mm) | Dimension H (mm) | Dimension H1 (mm) | Mass (kgs) | Dia. Of Wire Rope Applied (mm) | Dia. Of Hemp Rope Applied (mm) |
|---|---|---|---|---|---|---|---|---|
| DMJ-001 | 100 | 170 | 60 | 76 | 141 | 3.7 | 14 | 24 |
| DMJ-002 | 150 | 250 | 90 | 110 | 205 | 10.5 | 16 | 30 |
| DMJ-003 | 200 | 340 | 120 | 150 | 280 | 24 | 18 | 40 |
| DMJ-004 | 250 | 434 | 160 | 200 | 372 | 48 | 20 | 50 |
| DMJ-005 | 300 | 528 | 200 | 250 | 464 | 82 | 22 | 60 |
| DMJ-006 | 350 | 600 | 220 | 250 | 485 | 103 | 24 | 70 |
| DMJ-007 | 400 | 672 | 240 | 250 | 506 | 136 | 26 | 80 |
| DMJ-008 | 450 | 746 | 260 | 250 | 528 | 184 | 30 | 85 |
| DMJ-009 | 500 | 820 | 280 | 250 | 550 | 232 | 36 | 90 |
FAQs:
Q1: What materials are used in the construction of these mooring chocks?
A1: Our mooring chocks are crafted from high-grade cast steel, ensuring durability and resistance to corrosion in marine environments.
Q2: Are these chocks compliant with international standards?
A2: Yes, all our chocks are manufactured in full compliance with international standards such as CB T34-2007 and JISF2005/2017, and are approved by leading classification societies.
Q3: Can I get a custom-sized mooring chock for my vessel?
A3: Absolutely! We offer custom solutions to meet your specific vessel requirements, ensuring optimal compatibility and performance.
Q4: How long does it take to manufacture and deliver these chocks?
A4: The production time varies depending on the size and specifications, but our JISF2005 Closed Chock can be finished within 7 to 15 days. We strive to ensure prompt delivery to meet your project timelines.
Q5: What types of vessels can use these mooring chocks?
A5: Our mooring chocks are suitable for all kinds of ships, vessels, boats, tankers, and tugs, providing reliable rope guidance and enhancing operational safety.
The description/sizes may be different with goods, please check with us when order.
