Ship Launching Airbag – Advanced Marine Launching System with Reusable Design

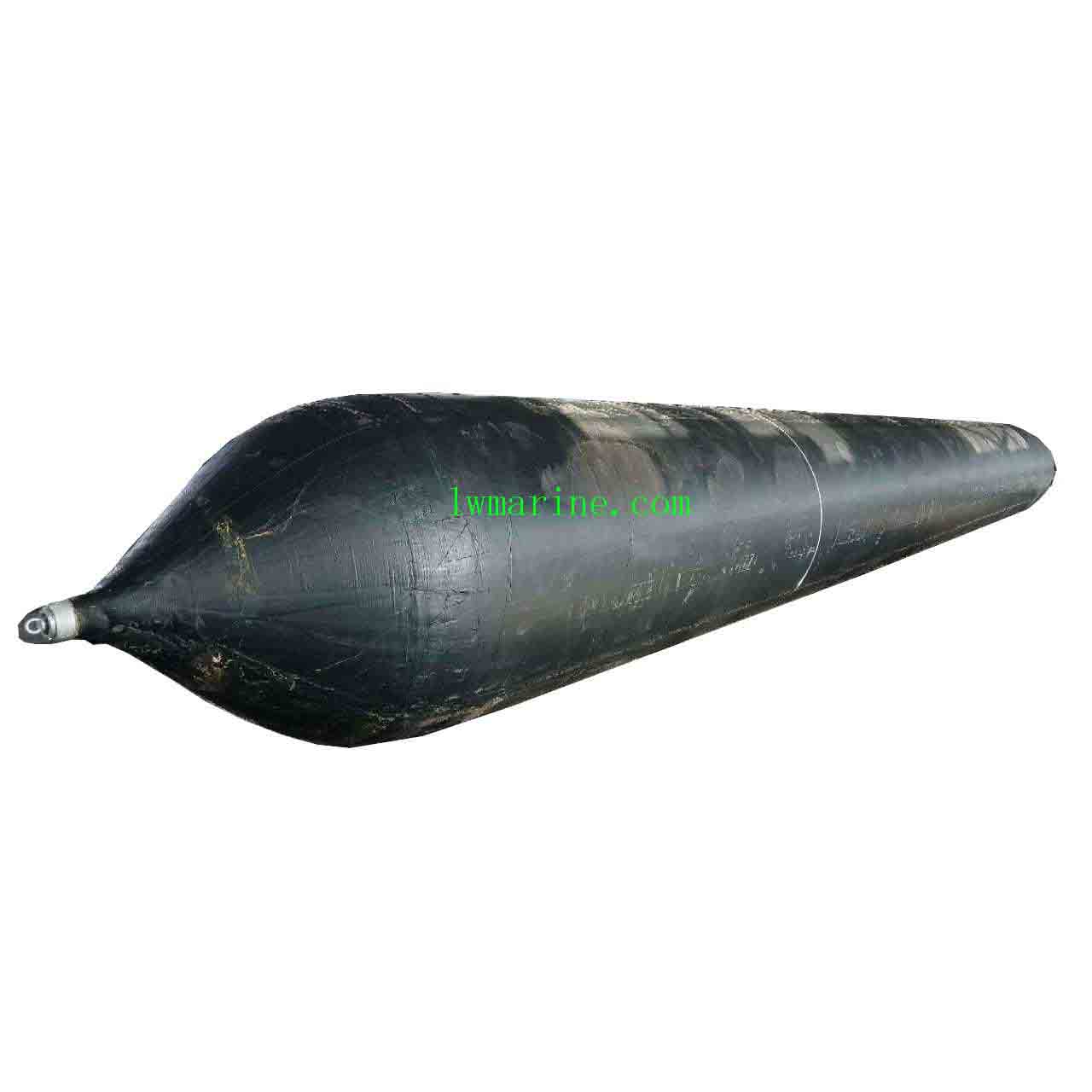

Engineered for modern shipyards and marine projects, our Ship Launching Airbag offers an efficient, eco-friendly, and cost-effective alternative to traditional launch methods. Comprising three core components—reinforced end ironwork, tapered end sections, and a durable cylindrical body—each airbag features a hollow interior with a soft rubber composite wall structure, designed to withstand extreme pressure while maintaining flexibility and safety.
Equipped with standardized internal threading on both ends, the airbag allows for easy connection to sealing plugs, drag rings, or pneumatic accessories, enabling quick inflation and deflation as needed. By significantly reducing the required length of underwater launch ramps and eliminating harmful water emissions, this system supports greener, more sustainable ship launching operations.
We provide standard diameters ranging from 0.8m to 2.5m, with custom lengths available to meet specific project requirements.
Key Features & Benefits
-
Long Service Life & Reusability: Crafted for multiple launch cycles, reducing long-term costs
-
Portable & Easy to Deploy: No permanent infrastructure required—ideal for temporary or remote sites
-
Cost-Effective Launch Solution: Lowers initial investment and operational expenses
-
Saves Time & Labor: Streamlines vessel launch procedures with minimal crew involvement
-
Excellent Air Retention: Advanced sealing technology ensures reliable and sustained inflation
-
Rigorous Quality Control: Each unit undergoes strict inspection for performance and safety
-
Precision Engineering: High-standard manufacturing ensures consistent and dependable operation
Airbag Configuration & Specifications
| Diameter (m) | Effective Length (m) | Layer Construction | Working Pressure (MPa) |
|---|---|---|---|
| 1.0 | 10, 12, 15 | 5–6 | 0.07–0.10 |
| 1.2 | 10, 12, 15 | 5–6 | 0.08–0.12 |
| 1.5 | 12, 15, 18, 20, 24 | 5–8 | 0.08–0.16 |
| 1.8 | 12, 15, 18, 20, 24 | 5–8 | 0.08–0.15 |
| 2.0 | 18, 20, 24 | 6–10 | 0.08–0.18 |
| 2.5 | 18, 20, 24 | 7–10 | 0.07–0.13 |
The description/sizes may be different with goods, please check with us when order.
