Marine Fresh Water Hydrophore Unit | Ship Hydrophore Tank
High-Performance Fresh Water Hydrophore Unit for Marine Applications

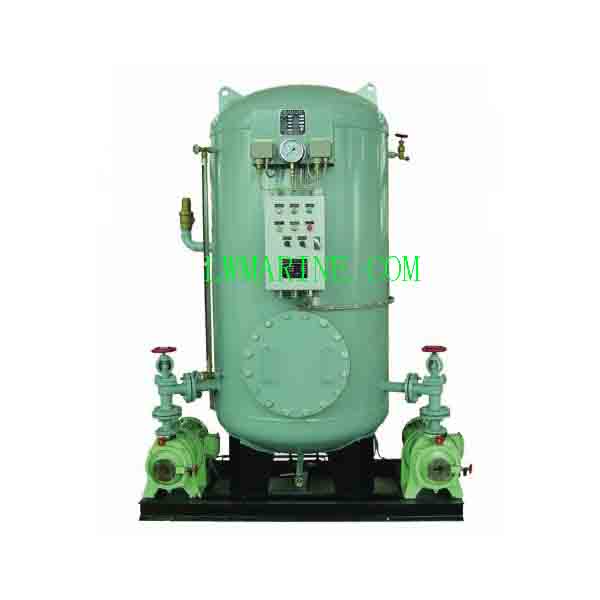

Our Ship Fresh Water Hydrophore Tank is engineered to deliver reliable and consistent water pressure for vessel washing, sanitation, and general fresh water supply onboard ships and offshore installations. Designed with redundancy and durability in mind, the system features two high-quality pressure pumps (one operational, one standby), along with integrated pressure gauges, safety valves, pressure switches, and all necessary controls for fully automatic operation.
This compact yet powerful unit ensures uninterrupted water supply even under demanding conditions, making it an ideal solution for maintaining hygiene and operational efficiency on various types of vessels.
Key Features & Benefits:
-
Dual-Pump System: Includes one main and one standby pump for continuous operation and fail-safe performance.
-
Comprehensive Safety Measures: Equipped with safety valve, pressure gauge valve, and pressure switch to prevent over-pressurization and ensure equipment longevity.
-
Robust Construction: Built to withstand marine environments with corrosion-resistant materials and compliant engineering.
-
Easy Maintenance: Modular design allows for quick inspection and servicing, reducing downtime.
-
Flexible Capacity Options: Available in volumes from 0.12 m³ to 3.0 m³ to suit different vessel sizes and water demand profiles.
Main Technical Parameters
-
Volume Range: 0.12 – 3.0 m³
-
Working Pressure: 0.4 – 0.6 MPa
-
Design Pressure: 0.4 – 0.7 MPa
-
Strength Test Pressure: 1.05 MPa
-
Air Tightness Test Pressure: 0.875 MPa
-
Safety Valve Opening Pressure: 0.63 MPa
Model Overview & Pump Specifications
| Model | Volume (m³) | Design Pressure (MPa) | Working Pressure (MPa) | Water Pump Model | Motor Power (kW) | Capacity (m³/h) | Pressure (MPa) |
|---|---|---|---|---|---|---|---|
| ZYG-0.2 | 0.2 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-0.3 | 0.3 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-0.5 | 0.5 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-1.0 | 1.0 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-1.5 | 1.5 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-2.0 | 2.0 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-2.5 | 2.5 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
The description/sizes may be different with goods, please check with us when order.
